Adet bazlı fiyat
- 1+ adet$31.16
- 10+ adet$29.40
- 100+ adet$27.73
- 500+ adet$26.16
Sevkiyat
Stoktan aynı gün hazırlık
Orijinal ürün
Doğrulanmış tedarik
RoHS
Compliant
Destek
Teknik ekip desteği

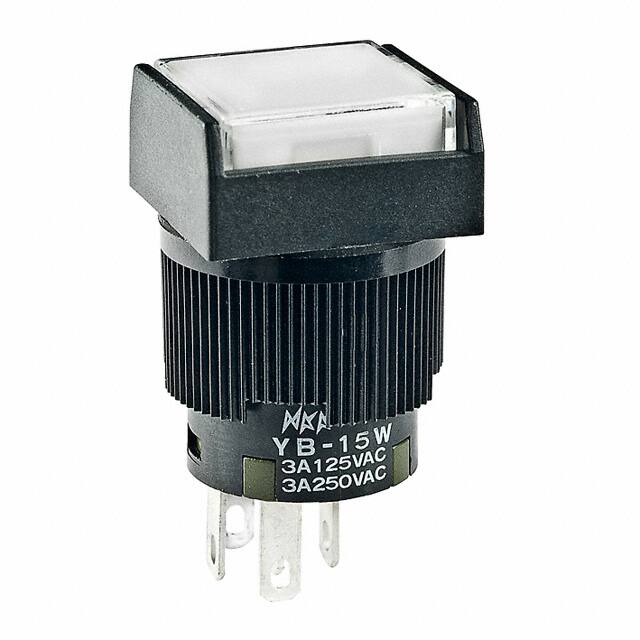

Teknik Özellikler
- Montaj
- Front, Panel
- Illumination Type
- LED
- Contact Current Rating
- 3A
- Color Actuatorcap
- Clear (White Filter/Diffuser)
- Ambalaj
- Tray
- Montaj Tipi
- Panel Mount, Front
- Illumination Type Color
- LED, White
- Illumination Voltage Nominal
- 3.3VDC
- Body Color
- BLACK
- Electricallife
- 100,000 Cycles
- Switch Function
- On-Mom
- Actuator Type
- Square, Button
- Kurşunsuz
- Contains Lead
- Solderability
- HAND
- Seri
- YB
- Circuit
- SPDT
- Parça Durumu
- Active
- Orientation
- Vertical
- Özellikler
- Epoxy Sealed Terminals
- Panel Cutout Dimensions
- Circular - 16.00mm Dia
- Ingress Protection
- IP65 - Dust Tight, Water Resistant
- Terminal Stili
- Solder, Quick Connect - 0.110 (2.8mm)
- Çalışma Sıcaklığı
- -25°C~50°C
- Nem Hassasiyeti (MSL)
- 1 (Unlimited)
- Length Termination
- 0.288 inch
- ECCN Kodu
- EAR99
- Contact Plating
- Silver
- Fabrika Tedarik Süresi
- 14 Weeks
- Insulation Resistance
- 200000000Ohm
- Ratings
- Dust Tight, IP65, Water Resistant
- Contact Currentdcmax
- 3A
- Actuator Length
- 0.327 inch
- Actuator Travel
- 2.9972 mm
- Contact Function
- ON-(ON)
- Contact Ac Max Rating R Load
- 3A@250VAC
- Terminal
- Solder
- Dielectric Withstanding Voltage
- 1500VAC V
- Flammability Rating
- UL94 V-0
- RoHS Durumu
- ROHS3 Compliant
- Tip
- Standard, Illuminated
