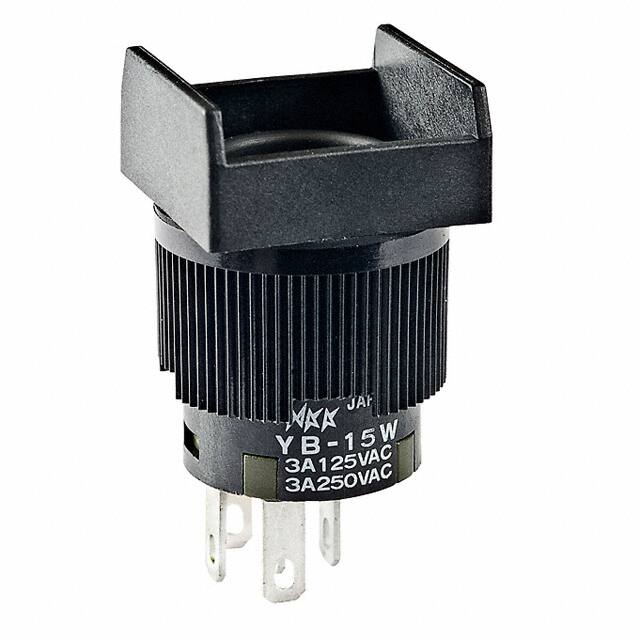

YB15WSKW01

Teknik Özellikler

Center Contact Material

SILVER ALLOY

Ambalaj

Tray

Montaj Tipi

Panel Mount, Front

Contact Current Rating

3A

Insulation Materials

DIALLYL PHTHALATE

Montaj

Front, Panel

Seri

YB

Circuit

SPDT

Parça Durumu

Active

Kurşunsuz

Contains Lead

Switch Function

On-Mom

Actuator Type

Plunger for Cap

Electricallife

100,000 Cycles

ECCN Kodu

EAR99

Nem Hassasiyeti (MSL)

1 (Unlimited)

Çalışma Sıcaklığı

-25°C~70°C

Terminal Stili

Solder, Quick Connect - 0.110 (2.8mm)

Bushing Diameter

0.629 inch

Panel Cutout Dimensions

Circular - 16.00mm Dia

Ingress Protection

IP65 - Dust Tight, Water Resistant

Orientation

Vertical

Özellikler

Epoxy Sealed Terminals

Ratings

Dust Tight, IP65, Water Resistant

Insulation Resistance

200000000Ohm

Reach Svhc

No SVHC

Fabrika Tedarik Süresi

9 Weeks

Dielectric Withstanding Voltage

1500VAC V

Contact Function

ON-(ON)

Contact Ac Max Rating R Load

3A@250VAC

Terminal

Solder

Actuator Length

0.327 inch

Actuator Travel

1.4986 mm

Contact Currentdcmax

3A

HTS Kodu

8536.50.90.33

Kurşunsuz Kodu

yes

Mechanical Life

1,000,000 Cycles

Current Rating Amps

3A AC/DC

Contact Resistance

0.05mOhm

Tip

Standard

RoHS Durumu

ROHS3 Compliant
