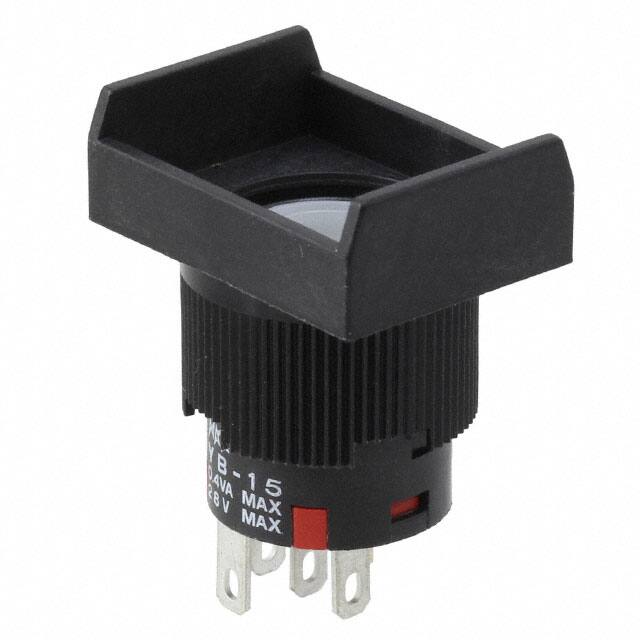

YB15WRKG01/C

Teknik Özellikler

Voltage Rated Dc

28V

Yayın Yılı

2011

Nem Hassasiyeti (MSL)

1 (Unlimited)

Body Length Or Diameter

24.003mm

Length Termination

0.288 inch

Çalışma Sıcaklığı

-25°C~70°C

Voltage Rated Ac

28V

Body Breadth

18.0086 mm

Terminal Stili

Solder, Quick Connect - 0.110 (2.8mm)

Panel Cutout Dimensions

Circular - 16.00mm Dia

Ingress Protection

IP65 - Dust Tight, Water Resistant

Özellikler

Epoxy Sealed Terminals

Yüzey Montaj

NO

Terminal Material

PHOSPHOR BRONZE

Housing Material

Polyamide

Ratings

IP65

Body Height

9.2964mm

Insulation Resistance

200000000Ohm

Fabrika Tedarik Süresi

14 Weeks

Power Rating

400mW

Contact Plating

Gold

Dielectric Withstanding Voltage

1000VAC V

Center Contact Material

BRASS

Flammability Rating

UL94 V-0

Montaj Tipi

Panel Mount, Front

Ambalaj

Bulk

Contact Function

ON-(ON)

Terminal

Solder

Actuator Travel

2.9972 mm

Actuator Length

0.327 inch

Seri

YB

Life Cycles

1e+06 cycles

Circuit

SPDT

Parça Durumu

Active

Mechanical Life

1,000,000 Cycles

Kurşunsuz Kodu

yes

Current Rating Amps

0.4VA AC/DC

Contact Resistance

0.1mOhm

Tip

Standard

Actuator Type

Plunger for Cap
