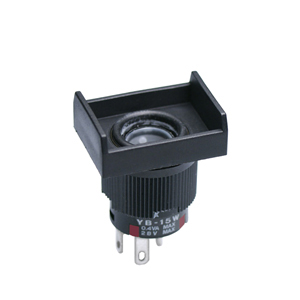

YB15WRKG01

Teknik Özellikler

Voltage Rated Ac

28V

Terminal Stili

Solder, Quick Connect - 0.110 (2.8mm)

Panel Cutout Dimensions

Circular - 16.00mm Dia

Ingress Protection

IP65 - Dust Tight, Water Resistant

Özellikler

Epoxy Sealed Terminals

Voltage Rated Dc

28V

Yayın Yılı

2011

Nem Hassasiyeti (MSL)

1 (Unlimited)

Pcb Hole Count

5

Çalışma Sıcaklığı

-25°C~70°C

Insulation Resistance

200000000Ohm

Fabrika Tedarik Süresi

8 Weeks

Power Rating

400mW

Contact Plating

Gold

Terminal Material

PHOSPHOR BRONZE

Housing Material

Polyamide

Ratings

Dust Tight, IP65, Water Resistant

Montaj

Front, Panel

Center Contact Material

BRASS

Dielectric Withstanding Voltage

1500VAC V

Flammability Rating

UL94 V-0

Ambalaj

Bulk

Contact Function

ON-(ON)

Montaj Tipi

Panel Mount, Front

Terminal

Solder

Actuator Travel

1.4986 mm

Actuator Length

0.327 inch

RoHS Durumu

ROHS3 Compliant

Electricallife

100,000 Cycles

Circuit

SPDT

Life Cycles

1e+06 cycles

Seri

YB

Parça Durumu

Active

Mechanical Life

1,000,000 Cycles

Kurşunsuz Kodu

yes

Contact Resistance

0.1mOhm

Current Rating Amps

0.4VA AC/DC

Tip

Standard

Switch Function

On-Mom

Actuator Type

Plunger for Cap
