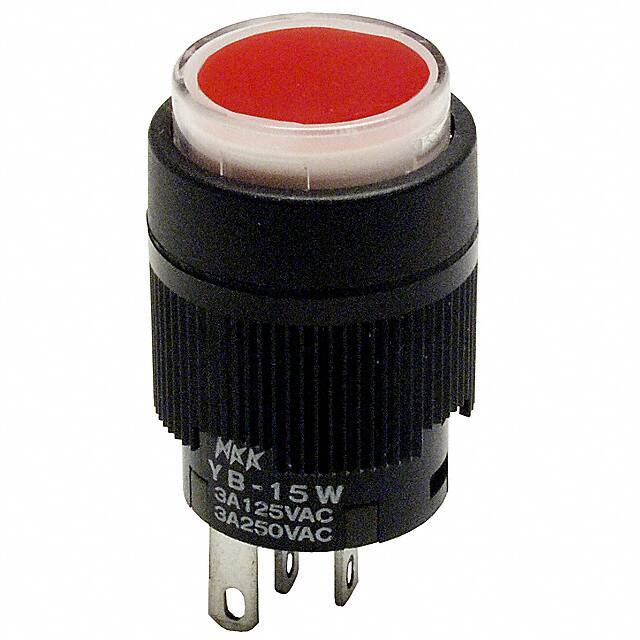

YB15WCKW01-5C-JC

Teknik Özellikler

Nem Hassasiyeti (MSL)

1 (Unlimited)

Max Voltage Rating Ac

250V

Çalışma Sıcaklığı

-25°C~50°C

Yayın Yılı

2011

Voltage Rated Dc

30V

ECCN Kodu

EAR99

Illumination Color

Red

Ingress Protection

IP65 - Dust Tight, Water Resistant

Panel Cutout Dimensions

Circular - 16.00mm Dia

Özellikler

Epoxy Sealed Terminals

Orientation

Vertical

Voltage Rated Ac

125V

Akım Değeri

3A

Uzunluk

18mm

Terminal Stili

Solder, Quick Connect - 0.110 (2.8mm)

Housing Material

Polyamide

Ratings

Dust Tight, IP65, Water Resistant

Fabrika Tedarik Süresi

5 Weeks

Reach Svhc

No SVHC

Contact Materials

Silver

Çap

18mm

Color Actuatorcap

Clear (Red Filter/Diffuser)

Illumination Type Color

LED, Red

Flammability Rating

UL94 V-0

Max Voltage Rating Dc

30V

Terminal

Solder

Montaj Tipi

Panel Mount, Front

Ambalaj

Bulk

Illumination Type

LED

Montaj

Front, Panel

Number Of Poles

1

Contact Current Rating

3A

Tip

Standard, Illuminated

Switch Function

On-Mom

Actuator Type

Round, Button

Parça Durumu

Active

Circuit

SPDT

Seri

YB

Current Rating Amps

3A AC/DC

Kurşunsuz

Contains Lead
