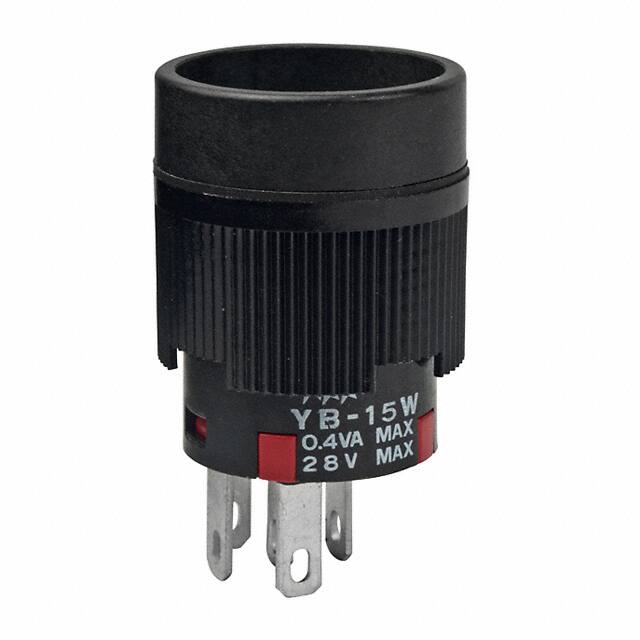

YB15WCKG01

Teknik Özellikler

Electricallife

100,000 Cycles

RoHS Durumu

ROHS3 Compliant

Mechanical Life

1,000,000 Cycles

Kurşunsuz Kodu

yes

Current Rating Amps

0.4VA AC/DC

Contact Resistance

0.1mOhm

Seri

YB

Circuit

SPDT

Parça Durumu

Active

Actuator Type

Plunger for Cap

Switch Function

On-Mom

Tip

Standard

Montaj

Front, Panel

Insulation Materials

DIALLYL PHTHALATE

Ambalaj

Bulk

Contact Function

ON-(ON)

Montaj Tipi

Panel Mount, Front

Terminal

Solder

Dielectric Withstanding Voltage

1500VAC V

Contact Materials

Gold

Actuator Length

0.347 inch

Actuator Travel

1.4986 mm

Insulation Resistance

200000000Ohm

Body Height

7.5946mm

Fabrika Tedarik Süresi

14 Weeks

Terminal Material

PHOSPHOR BRONZE

Contact Ac Max Power Rating R Load

0.4VA@28VAC

Bushing Length

0.37 inch

Ratings

Dust Tight, IP65, Water Resistant

Housing Material

GLASS FILLED POLYAMIDE

Terminal Stili

Solder, Quick Connect - 0.110 (2.8mm)

Voltage Rated Ac

28V

Özellikler

Epoxy Sealed Terminals

Panel Cutout Dimensions

Circular - 16.00mm Dia

Bushing Diameter

0.629 inch

Ingress Protection

IP65 - Dust Tight, Water Resistant

Voltage Rated Dc

28V

Yayın Yılı

2011

Pcb Hole Count

5

Çalışma Sıcaklığı

-25°C~70°C
