Adet bazlı fiyat
- 1+ adet$22.98
- 10+ adet$21.68
- 100+ adet$20.46
- 500+ adet$19.30
Sevkiyat
Stoktan aynı gün hazırlık
Orijinal ürün
Doğrulanmış tedarik
RoHS
Compliant
Destek
Teknik ekip desteği

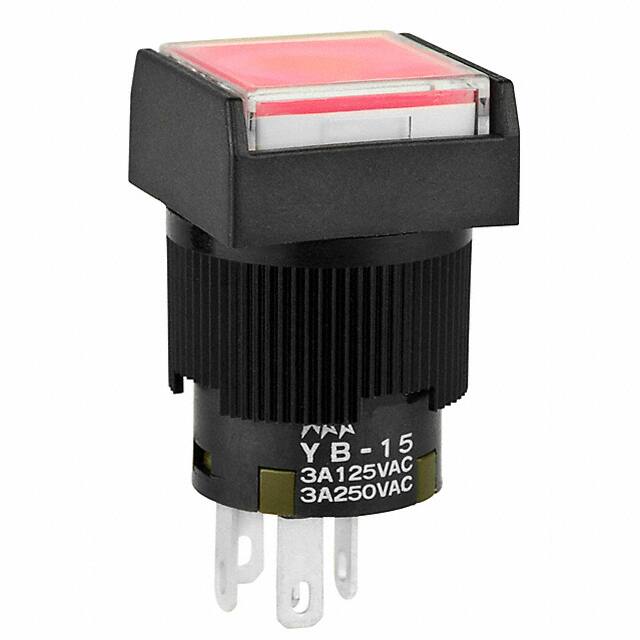

Teknik Özellikler
- Illumination Type
- LED
- Montaj
- Front, Panel
- Color Actuatorcap
- Clear (Red Filter/Diffuser)
- Contact Materials
- Silver
- Illumination Type Color
- LED, Red
- Montaj Tipi
- Panel Mount, Front
- Ambalaj
- Tray
- Terminal
- Solder
- Max Voltage Rating Dc
- 30V
- Depth
- 18mm
- Illumination Voltage Nominal
- 1.9VDC
- Max Current Rating
- 3A
- RoHS Durumu
- ROHS3 Compliant
- Electricallife
- 100,000 Cycles
- Tip
- Standard, Illuminated
- Switch Function
- On-Mom
- Actuator Type
- Square, Button
- Seri
- YB
- Circuit
- SPDT
- Parça Durumu
- Active
- Mechanical Life
- 1,000,000 Cycles
- Kurşunsuz Kodu
- yes
- Kurşunsuz
- Contains Lead
- Current Rating Amps
- 3A AC/DC
- Panel Cutout Dimensions
- Circular - 16.00mm Dia
- Illumination Color
- Red
- Orientation
- Vertical
- Özellikler
- Epoxy Sealed Terminals
- Akım Değeri
- 3A
- Voltage Rated Ac
- 125V
- Terminal Stili
- Solder, Quick Connect - 0.110 (2.8mm)
- Uzunluk
- 18mm
- Nem Hassasiyeti (MSL)
- 1 (Unlimited)
- Çalışma Sıcaklığı
- -25°C~50°C
- Max Voltage Rating Ac
- 250V
- Voltage Rated Dc
- 30V
- Yayın Yılı
- 2011
- ECCN Kodu
- EAR99
- Fabrika Tedarik Süresi
- 14 Weeks
- Housing Material
- Resin
