Adet bazlı fiyat
- 1+ adet$20.87
- 10+ adet$19.69
- 100+ adet$18.57
- 500+ adet$17.52
Sevkiyat
Stoktan aynı gün hazırlık
Orijinal ürün
Doğrulanmış tedarik
RoHS
Compliant
Destek
Teknik ekip desteği

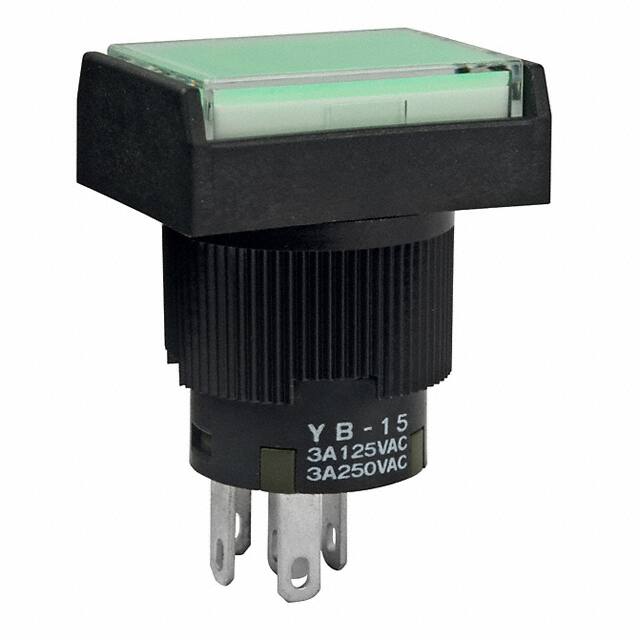

Teknik Özellikler
- Illumination Type Color
- LED, Green
- Montaj Tipi
- Panel Mount, Front
- Ambalaj
- Bulk
- Color Actuatorcap
- Clear (Green Filter/Diffuser)
- Contact Current Rating
- 3A
- Circuit
- SPDT
- Seri
- YB
- Parça Durumu
- Active
- Mechanical Life
- 1,000,000 Cycles
- Kurşunsuz Kodu
- yes
- Current Rating Amps
- 3A AC/DC
- Tip
- Standard, Illuminated
- Actuator Type
- Rectangular, Button
- Switch Function
- On-Mom
- RoHS Durumu
- ROHS3 Compliant
- Electricallife
- 100,000 Cycles
- Illumination Voltage Nominal
- 12VDC
- Yayın Yılı
- 2011
- Voltage Rated Dc
- 30V
- ECCN Kodu
- EAR99
- Nem Hassasiyeti (MSL)
- 1 (Unlimited)
- Çalışma Sıcaklığı
- -25°C~50°C
- Voltage Rated Ac
- 125V
- Terminal Stili
- Solder, Quick Connect - 0.110 (2.8mm)
- Panel Cutout Dimensions
- Circular - 16.00mm Dia
- Özellikler
- Epoxy Sealed Terminals
- Fabrika Tedarik Süresi
- 14 Weeks
