Adet bazlı fiyat
- 1+ adet$21.69
- 10+ adet$20.46
- 100+ adet$19.30
- 500+ adet$18.21
Sevkiyat
Stoktan aynı gün hazırlık
Orijinal ürün
Doğrulanmış tedarik
RoHS
Compliant
Destek
Teknik ekip desteği

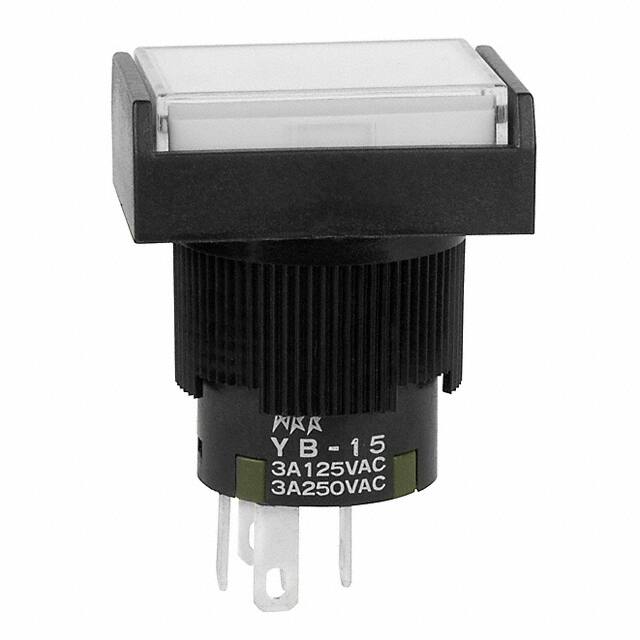

Teknik Özellikler
- Contact Current Rating
- 3A
- Montaj
- Front, Panel
- Illumination Type
- LED
- Montaj Tipi
- Panel Mount, Front
- Ambalaj
- Tray
- Terminal
- Solder
- Max Voltage Rating Dc
- 30V
- Flammability Rating
- UL94 V-0
- Illumination Type Color
- LED, Red/Green
- Color Actuatorcap
- Clear (White Filter/Diffuser)
- Contact Materials
- Silver
- Kılıf / Paket
- 125
- RoHS Durumu
- ROHS3 Compliant
- Electricallife
- 100,000 Cycles
- Max Current Rating
- 3A
- Illumination Voltage Nominal
- 24VDC
- Depth
- 24mm
- Kurşunsuz
- Contains Lead
- Mechanical Life
- 1,000,000 Cycles
- Kurşunsuz Kodu
- yes
- Current Rating Amps
- 3A AC/DC
- Seri
- YB
- Life Cycles
- 1e+06 cycles
- Circuit
- SPDT
- Parça Durumu
- Active
- Switch Function
- On-Mom
- Actuator Type
- Rectangular, Button
- Tip
- Standard, Illuminated
- Terminal Stili
- Solder, Quick Connect - 0.110 (2.8mm)
- Uzunluk
- 18mm
- Akım Değeri
- 3A
- Voltage Rated Ac
- 125V
- Orientation
- Vertical
- Özellikler
- Epoxy Sealed Terminals
- Panel Cutout Dimensions
- Circular - 16.00mm Dia
- Illumination Color
- Green, Red
- ECCN Kodu
- EAR99
- Voltage Rated Dc
- 30V
- Yayın Yılı
- 2011
- Çalışma Sıcaklığı
- -25°C~50°C
