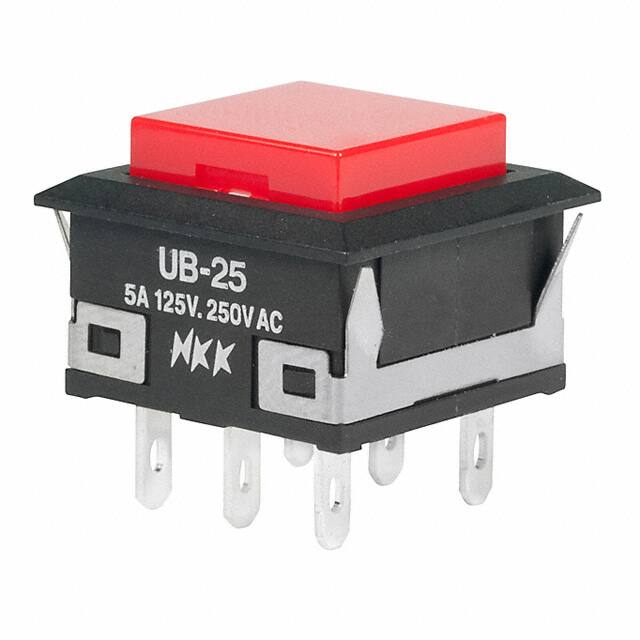

UB25KKW01N-C

Teknik Özellikler

Contact Voltageacmax

250V

Tip

Standard

Dielectric Withstanding Voltage

1500VAC V

Nem Hassasiyeti (MSL)

1 (Unlimited)

Contact Resistance

0.05mOhm

Kılıf / Paket

125

Circuit

DPDT

Çalışma Sıcaklığı

-20°C~70°C

Body Breadth

15.7988 mm

Body Length Or Diameter

15.7988mm

Terminal Material

PHOSPHOR BRONZE

Montaj Tipi

Panel Mount, Snap-In

Montaj

Panel, Snap in

Kurşunsuz Kodu

yes

Contact Currentacmax

5A

Fabrika Tedarik Süresi

9 Weeks

Orientation

Vertical

Mechanical Life

1,000,000 Cycles

Contact Currentdcmax

5A

Contact Plating

Silver

Yayın Yılı

2011

Contact Ac Max Rating R Load

5A@250VAC

Electricallife

10,000 Cycles

Contact Function

ON-(ON)

Panel Cutout Dimensions

Square - 16.20mm2

Özellikler

Epoxy Sealed Terminals

Kurşunsuz

Contains Lead

Actuator Length

0.098 inch

Housing Material

Polyamide

Switch Function

On-Mom

Seri

UB

Voltage Rated Ac

125V

Ambalaj

Tray

Parça Durumu

Active

Actuator Travel

2.3114 mm

Current Rating Amps

5A AC/DC

Akım Değeri

5A

Body Height

17.5006mm

Actuator Type

Square, Button

Flammability Rating

UL94 V-0
