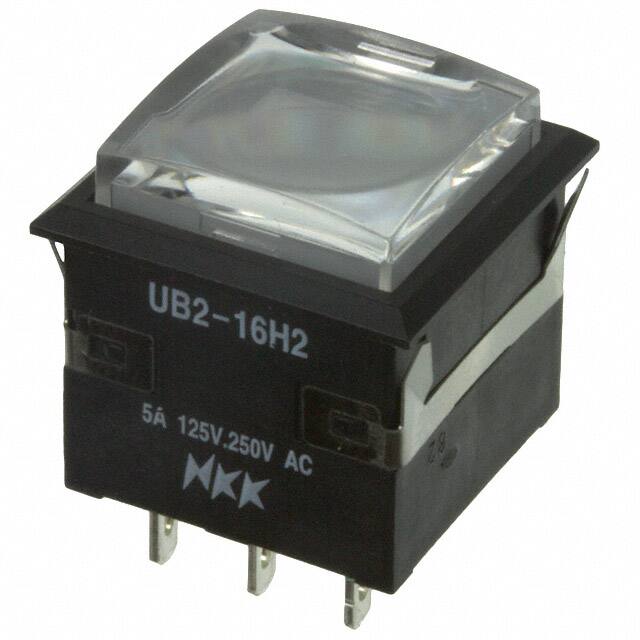

UB216KKW016CF-1JB

Teknik Özellikler

Max Current Rating

5A

Tip

Standard, Illuminated

Nem Hassasiyeti (MSL)

1 (Unlimited)

Illumination Voltage Nominal

2.1 3.5VDC

Dielectric Withstanding Voltage

1500VAC V

Kılıf / Paket

125

Contact Resistance

0.05mOhm

Circuit

SPDT

Contact Dc Max Rating R Load

5A@30VDC

Body Breadth

18.9992 mm

Çalışma Sıcaklığı

-25°C~50°C

Terminal Material

PHOSPHOR BRONZE

Montaj

Panel, Snap in

Montaj Tipi

Panel Mount, Snap-In

Kurşunsuz Kodu

yes

Contact Currentacmax

5A

Fabrika Tedarik Süresi

5 Weeks

Contact Timing

BREAK-BEFORE-MAKE

Orientation

Vertical

Mechanical Life

200,000 Cycles

Contact Currentdcmax

5A

Contact Materials

Silver

Yayın Yılı

2006

Depth

19mm

Contact Ac Max Rating R Load

5A@250VAC

Max Voltage Rating Dc

30V

Electricallife

10,000 Cycles

Özellikler

Epoxy Sealed Terminals

Illumination Type Color

LED, Red/Green

Panel Cutout Dimensions

Square - 17.40mm2

Kurşunsuz

Lead Free

Actuator Material

Polycarbonate

Switch Function

On-On

Housing Material

Polyamide

Seri

UB2

Voltage Rated Ac

125V

Ambalaj

Tray

Parça Durumu

Active

Current Rating Amps

5A AC/DC

Body Height

15.494mm
