Adet bazlı fiyat
- 1+ adet$17.48
- 10+ adet$16.49
- 100+ adet$15.56
- 500+ adet$14.68
Sevkiyat
Stoktan aynı gün hazırlık
Orijinal ürün
Doğrulanmış tedarik
RoHS
Compliant
Destek
Teknik ekip desteği

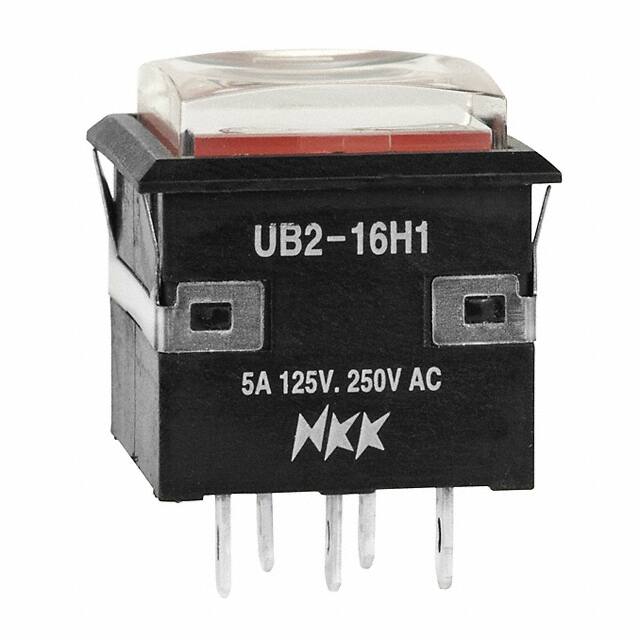

Teknik Özellikler
- Switch Function
- On-On
- Housing Material
- Polyamide
- Genişlik
- 15mm
- Seri
- UB2
- Voltage Rated Ac
- 125V
- Terminal Kaplaması
- Gold (Au)
- Actuator Travel
- 2.3114 mm
- Parça Durumu
- Active
- Ambalaj
- Bulk
- Current Rating Amps
- 5A AC/DC
- Akım Değeri
- 5A
- Body Height
- 10.0076mm
- ECCN Kodu
- EAR99
- Voltage Rated Dc
- 30V
- Flammability Rating
- UL94 V-0
- Actuator Type
- Square, Button
- Illumination Type
- Illuminated, LED
- Insulation Resistance
- 200000000Ohm
- Terminal
- Solder
- Illumination Color
- Red
- Contact Current Rating
- 5A
- Color Actuatorcap
- Clear (Red Filter/Diffuser)
- Terminal Stili
- Solder Lug
- RoHS Durumu
- ROHS3 Compliant
- Uzunluk
- 19mm
- Contact Voltageacmax
- 250V
- Solderability
- WAVE
- Tip
- Standard, Illuminated
- Kılıf / Paket
- 125
- Contact Resistance
- 0.05mOhm
- Nem Hassasiyeti (MSL)
- 1 (Unlimited)
- Illumination Voltage Nominal
- 1.85VDC
- Dielectric Withstanding Voltage
- 1000VAC V
- Circuit
- SPDT
- Terminal Material
- PHOSPHOR BRONZE
- Body Breadth
- 15.24 mm
- JESD-609 Kodu
- e4
- Çalışma Sıcaklığı
- -25°C~50°C
- Montaj Tipi
- Panel Mount, Snap-In
- Montaj
- Panel, Snap in
