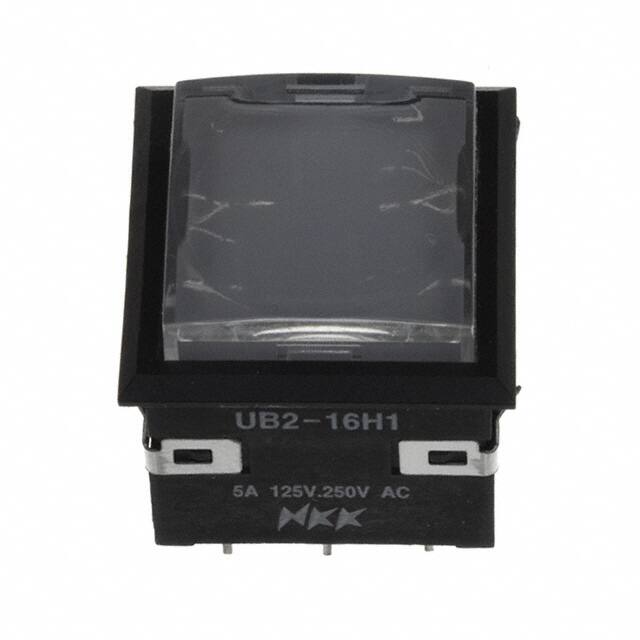

UB216KKW015C-1JB

Teknik Özellikler

Contact Plating

Silver

Mechanical Life

200,000 Cycles

Yayın Yılı

2002

Kurşunsuz Kodu

yes

Contact Currentacmax

5A

Orientation

Vertical

Fabrika Tedarik Süresi

8 Weeks

Kurşunsuz

Contains Lead

Washability

SOLVENT

Contact Ac Max Rating R Load

5A@250VAC

Illumination Type Color

LED, Red

Özellikler

Epoxy Sealed Terminals

Panel Cutout Dimensions

Square - 17.40mm2

Electricallife

10,000 Cycles

Kılıf / Paket

125

Contact Resistance

0.05mOhm

Nem Hassasiyeti (MSL)

1 (Unlimited)

Illumination Voltage Nominal

1.85VDC

Dielectric Withstanding Voltage

1000VAC V

Contact Voltageacmax

250V

Solderability

WAVE

Tip

Standard, Illuminated

Montaj

Panel, Snap in

Montaj Tipi

Panel Mount, Snap-In

Circuit

SPDT

Terminal Material

PHOSPHOR BRONZE

JESD-609 Kodu

e4

Body Breadth

15.24 mm

Çalışma Sıcaklığı

-25°C~50°C

Terminal

Solder

Illumination Color

Red

Contact Current Rating

5A

Illumination Type

LED

Insulation Resistance

200000000Ohm

RoHS Durumu

ROHS3 Compliant

Uzunluk

19mm

Color Actuatorcap

Clear (White Filter/Diffuser)

Terminal Stili

Solder Lug

Voltage Rated Ac

125V

Seri

UB2
