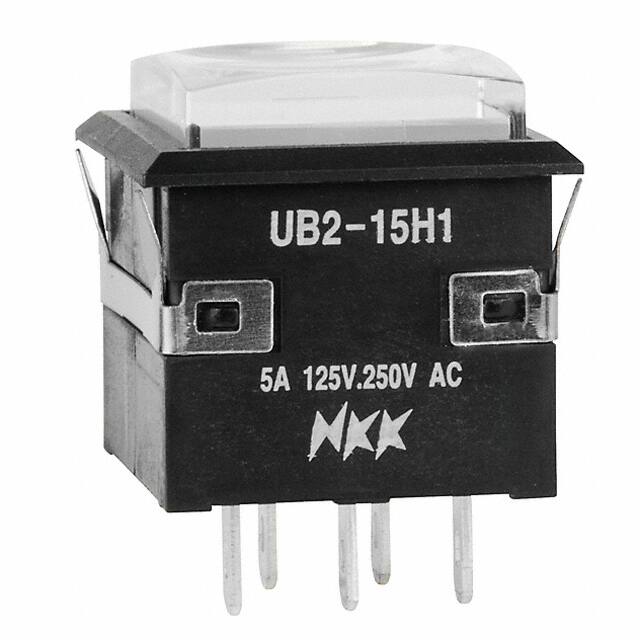

UB215KKW015F-1JB

Teknik Özellikler

Contact Currentacmax

5A

Kurşunsuz Kodu

yes

Fabrika Tedarik Süresi

8 Weeks

Contact Timing

BREAK-BEFORE-MAKE

Orientation

Vertical

Mechanical Life

1,000,000 Cycles

Contact Currentdcmax

5A

Contact Materials

Silver

Yayın Yılı

2002

Depth

19mm

Contact Ac Max Rating R Load

5A@250VAC

Electricallife

10,000 Cycles

Max Voltage Rating Dc

30V

Contact Function

ON-(ON)

Panel Cutout Dimensions

Square - 17.40mm2

Özellikler

Epoxy Sealed Terminals

Illumination Type Color

LED, Green

Kurşunsuz

Contains Lead

Actuator Material

Polycarbonate

Max Current Rating

5A

Tip

Standard, Illuminated

Dielectric Withstanding Voltage

1500VAC V

Nem Hassasiyeti (MSL)

1 (Unlimited)

Illumination Voltage Nominal

2.1VDC

Contact Resistance

0.05mOhm

Kılıf / Paket

125

Circuit

SPDT

Contact Dc Max Rating R Load

5A@30VDC

Çalışma Sıcaklığı

-25°C~50°C

Body Breadth

18.9992 mm

Terminal Material

PHOSPHOR BRONZE

Montaj Tipi

Panel Mount, Snap-In

Montaj

Panel, Snap in

Illumination Type

Illuminated, LED

Insulation Resistance

200000000Ohm

Terminal

Solder

Contact Current Rating

5A

Illumination Color

Green

Max Voltage Rating Ac

250V

Terminal Stili

Solder Lug
