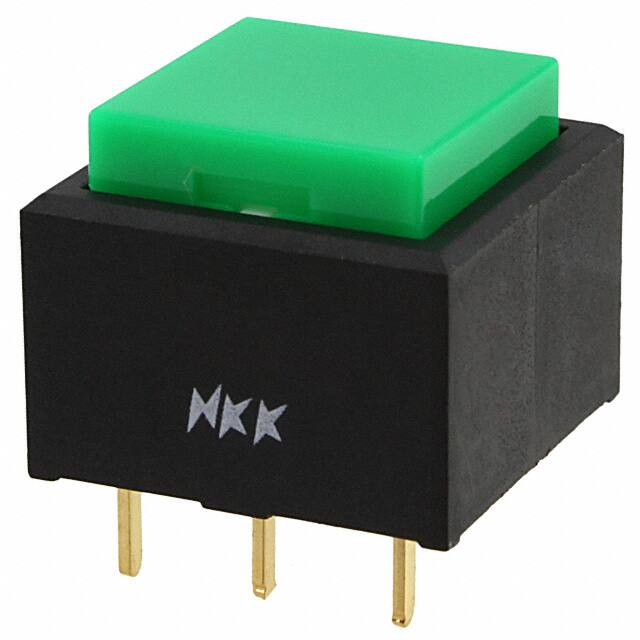

UB15SKG03N-F

Teknik Özellikler

Circuit

SPDT

Current Rating Amps

0.4VA AC/DC

Insulation Materials

GLASS FILLED DIALLYL PHTHALATE

Çalışma Sıcaklığı

-20°C~70°C

Body Breadth

15.24 mm

Body Length Or Diameter

15.24mm

Terminal Material

BRASS

Body Height

16.4846mm

Montaj

Through Hole

Actuator Type

Square, Button

Montaj Tipi

Through Hole

Voltage Rated Dc

28V

ECCN Kodu

EAR99

Housing Material

GLASS FILLED REINFORCED NYLON

Switch Function

On-Mom

Solderability

WAVE

Tip

Standard

Dielectric Withstanding Voltage

1500VAC V

Nem Hassasiyeti (MSL)

1 (Unlimited)

Seri

UB

Voltage Rated Ac

28V

Contact Resistance

0.1mOhm

Ambalaj

Tray

Parça Durumu

Active

Actuator Travel

2.3114 mm

Power Rating

400mW

Terminal Stili

PC Pin

Color Actuatorcap

Green

Electricallife

200,000 Cycles

Contact Function

ON-(ON)

End Contact Material

COPPER ALLOY

Özellikler

Epoxy Sealed Terminals

Pcb Hole Count

3

RoHS Durumu

ROHS3 Compliant

Length Termination

0.157 inch

Kurşunsuz

Lead Free

Actuator Material

POLYCARBONATE

Actuator Length

0.098 inch

Kurşunsuz Kodu

yes

Fabrika Tedarik Süresi

5 Weeks
