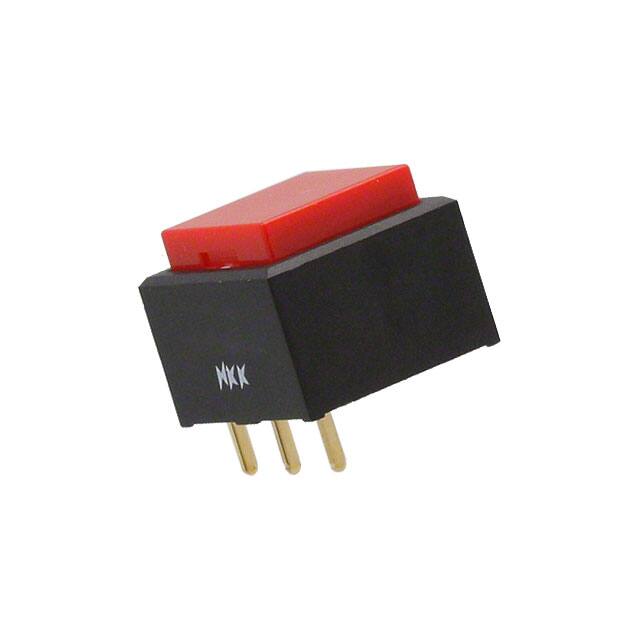

UB15SKG03N-C

Teknik Özellikler

Montaj Tipi

Through Hole

Montaj

Through Hole

Additional Feature

EXTRA LOW PROFILE

Body Length Or Diameter

15.24mm

Terminal Material

BRASS

Çalışma Sıcaklığı

-20°C~70°C

Body Breadth

15.24 mm

Contact Dc Max Rating R Load

.014A@28VDC

Circuit

SPDT

Contact Resistance

0.1mOhm

Dielectric Withstanding Voltage

1500VAC V

Reach Svhc

No SVHC

Nem Hassasiyeti (MSL)

1 (Unlimited)

Tip

Standard

Solderability

WAVE

Actuator Length

0.098 inch

Actuator Material

POLYCARBONATE

Kurşunsuz

Lead Free

Özellikler

Epoxy Sealed Terminals

Electricallife

200,000 Cycles

End Contact Material

COPPER ALLOY

Contact Function

ON-(ON)

Contact Ac Max Rating R Load

.014A@28VAC

Operating Forcemax

1.57 N

Yayın Yılı

2009

Contact Plating

Gold

Contact Currentdcmax

0.014A

Throw Configuration

DPDT, SPDT

Mechanical Life

1,000,000 Cycles

Orientation

Vertical

Fabrika Tedarik Süresi

5 Weeks

Contact Currentacmax

0.014A

Kurşunsuz Kodu

yes

ECCN Kodu

EAR99

Voltage Rated Dc

28V

Actuator Type

Square, Button

Flammability Rating

UL94 V-0

Body Height

10mm

Current Rating Amps

0.4VA AC/DC

Actuator Travel

2.3114 mm
