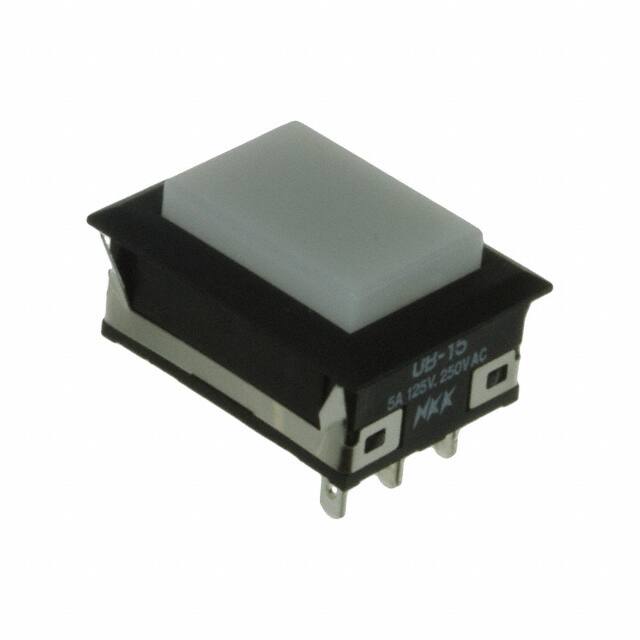

UB15NKW01N-B

Teknik Özellikler

Yayın Yılı

2001

Mechanical Life

1,000,000 Cycles

Throw Configuration

DPDT, SPDT

Contact Currentdcmax

5A

Contact Plating

Gold

Fabrika Tedarik Süresi

11 Weeks

Orientation

Vertical

Kurşunsuz Kodu

yes

Contact Currentacmax

5A

Actuator Length

0.098 inch

Kurşunsuz

Contains Lead

Contact Function

ON-(ON)

Electricallife

10,000 Cycles

Özellikler

Epoxy Sealed Terminals

Panel Cutout Dimensions

Rectangular - 22.40mm x 16.20mm

Contact Ac Max Rating R Load

5A@250VAC

Nem Hassasiyeti (MSL)

1 (Unlimited)

Dielectric Withstanding Voltage

1500VAC V

Kılıf / Paket

125

Contact Resistance

0.05mOhm

Tip

Standard

Contact Voltageacmax

250V

Montaj Tipi

Panel Mount, Snap-In

Montaj

Panel, Snap in

Body Breadth

15.7988 mm

Çalışma Sıcaklığı

-20°C~70°C

Terminal Material

PHOSPHOR BRONZE

Body Length Or Diameter

21.9964mm

Circuit

SPDT

Insulation Materials

GLASS FILLED POLYAMIDE

Terminal

Solder

Insulation Resistance

200000000Ohm

RoHS Durumu

ROHS3 Compliant

Length Termination

0.197 inch

Terminal Stili

Solder Lug

Color Actuatorcap

White

Parça Durumu

Active

Ambalaj

Tray

Actuator Travel

2.3114 mm

Voltage Rated Ac

125V
