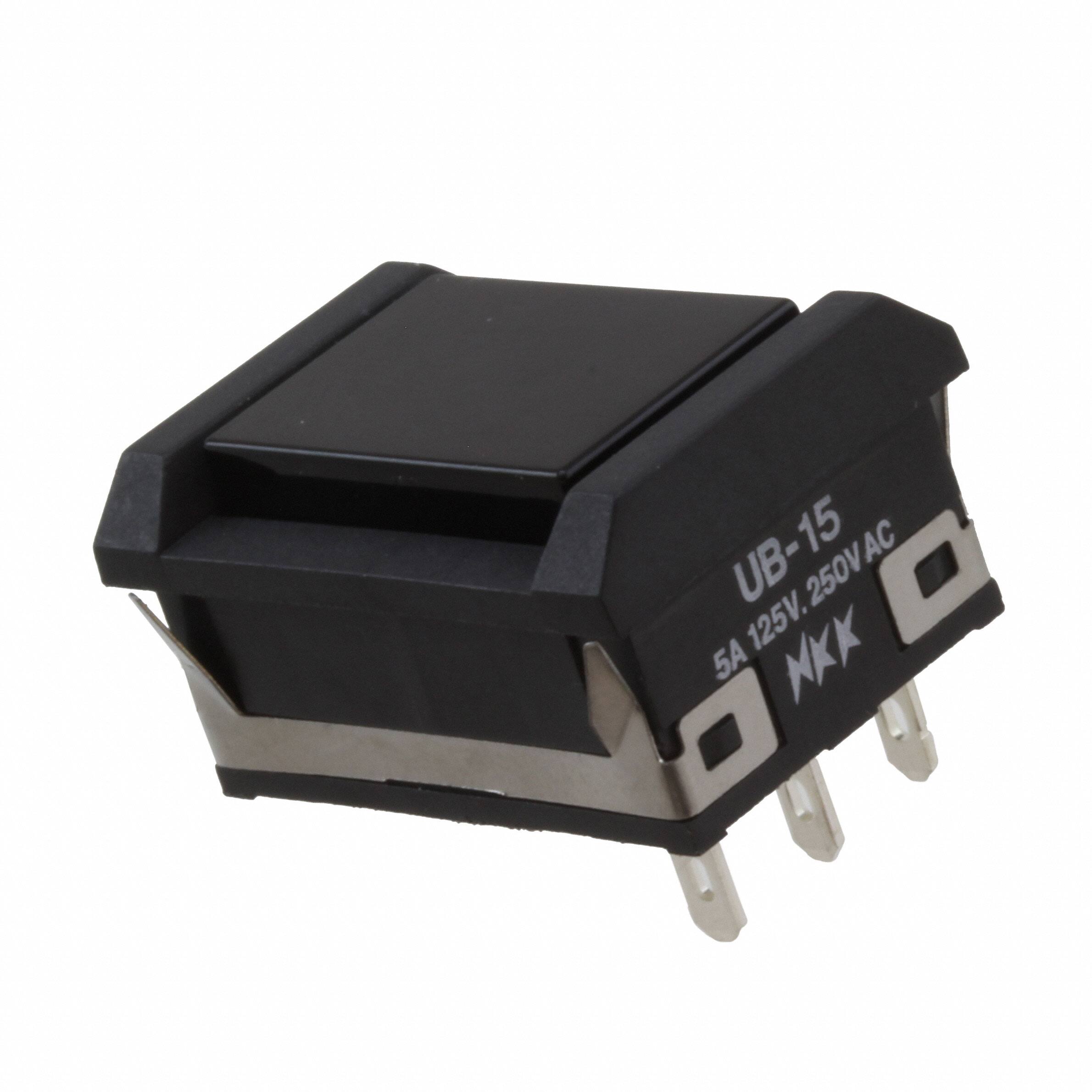

UB15NBKW01N-A

Teknik Özellikler

Actuator Length

0.154 inch

Özellikler

With Barrier

Panel Cutout Dimensions

Rectangular - 22.40mm x 16.20mm

Contact Function

ON-(ON)

Electricallife

10,000 Cycles

Contact Ac Max Rating R Load

5A@250VAC

Yayın Yılı

2011

Contact Plating

Gold

Mechanical Life

1,000,000 Cycles

Throw Configuration

DPDT, SPDT

Fabrika Tedarik Süresi

11 Weeks

Kurşunsuz Kodu

yes

Contact Currentacmax

5A

Montaj

Panel, Snap in

Montaj Tipi

Panel Mount, Snap-In

Terminal Material

PHOSPHOR BRONZE

Body Length Or Diameter

24.003mm

Body Breadth

15.7988 mm

Çalışma Sıcaklığı

-20°C~70°C

Insulation Materials

GLASS FILLED POLYAMIDE

Circuit

SPDT

Kılıf / Paket

125

Contact Resistance

0.05mOhm

Nem Hassasiyeti (MSL)

1 (Unlimited)

Reach Svhc

No SVHC

Dielectric Withstanding Voltage

1500VAC V

Tip

Standard

Contact Voltageacmax

250V

Length Termination

0.197 inch

RoHS Durumu

ROHS3 Compliant

Sealing

EPOXY

Color Actuatorcap

Black

Terminal Stili

Solder Lug

Contact Current Rating

5A

Terminal

Solder

Insulation Resistance

200000000Ohm

ECCN Kodu

EAR99

Voltage Rated Dc

30V

Actuator Type

Rectangular, Button

Body Height

10.0076mm
