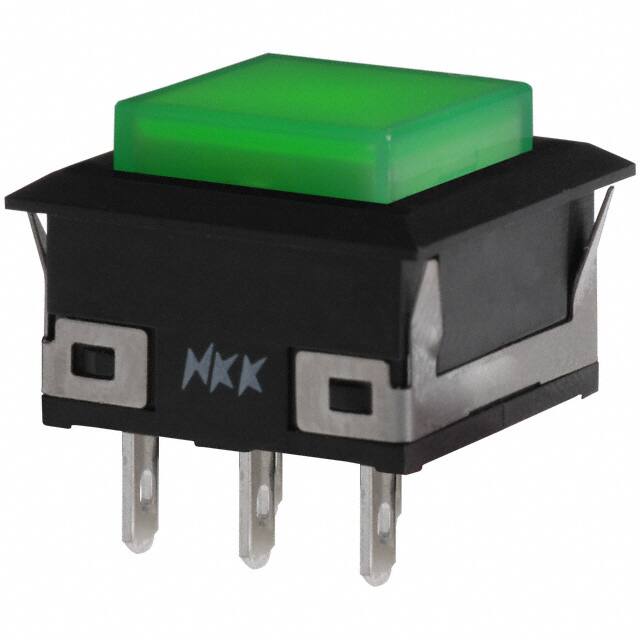

UB15KKW015F-FF

Teknik Özellikler

Circuit

SPDT

Contact Dc Max Rating R Load

5A@30VDC

Current Rating Amps

5A AC/DC

Number Of Poles

1

Çalışma Sıcaklığı

-25°C~50°C

Pozisyon Sayısı

2

Akım Değeri

5A

Montaj Tipi

Panel Mount, Snap-In

Actuator Type

Square, Button

Montaj

Panel, Snap in

Flammability Rating

UL94 V-0

Voltage Rated Dc

30V

ECCN Kodu

EAR99

Housing Material

Polyamide

Switch Function

On-Mom

Genişlik

12mm

Max Current Rating

5A

Tip

Standard, Illuminated

Illumination Voltage Nominal

2.1VDC

Reach Svhc

No SVHC

Nem Hassasiyeti (MSL)

1 (Unlimited)

Voltage Rated Ac

125V

Seri

UB

Parça Durumu

Active

Ambalaj

Bulk

Depth

17.8mm

Max Voltage Rating Ac

250V

Terminal Stili

Solder Lug

Color Actuatorcap

Green

Electricallife

10,000 Cycles

Max Voltage Rating Dc

30V

Panel Cutout Dimensions

Square - 16.20mm2

Illumination Type Color

LED, Green

Özellikler

Epoxy Sealed Terminals

RoHS Durumu

ROHS3 Compliant

Kurşunsuz

Lead Free

Uzunluk

17.8mm

Illumination Type

LED

Kurşunsuz Kodu

yes

Contact Currentacmax

5A
