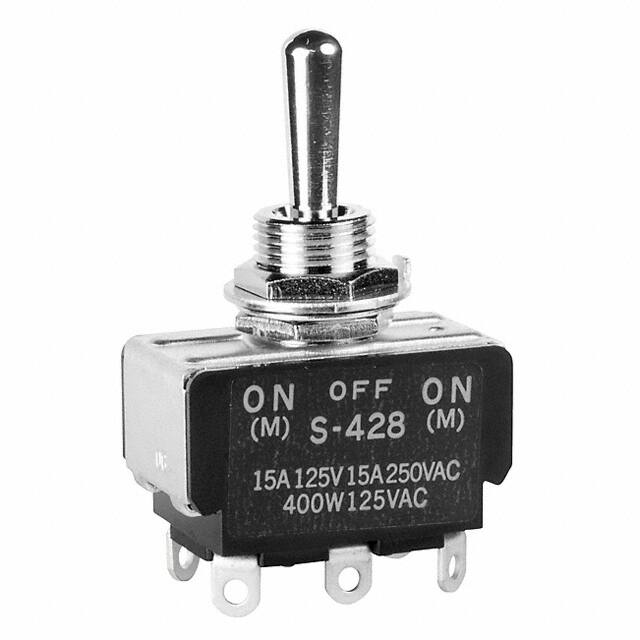

S428

Teknik Özellikler

Actuator Type

Standard Round

Life Cycles

15000 cycles

Illumination

Non-Illuminated

Contact Voltageacmax

250V

Çalışma Sıcaklığı

-10°C~70°C

Switch Function

Mom-Off-Mom

Kurşunsuz

Contains Lead

Contact Materials

Silver

Contact Resistance

0.01mOhm

Insulation Resistance

1000000000Ohm

Kurşunsuz Kodu

yes

Voltage Rated Ac

125V

Parça Durumu

Active

Ambalaj

Bulk

Terminal

Solder

Bushing Type

M12P1

Bushing Length

0.472 inch

Contact Ac Max Rating R Load

15A@250VAC

Panel Cutout Dimensions

Circular - 12.50mm Dia

Fabrika Tedarik Süresi

15 Weeks

Circuit

DPDT

Body Breadth

18.9992 mm

Contact Ac Max Rating I Load

15A@250VAC

Montaj Tipi

Panel Mount

Actuator Length

17.50mm

Housing Material

PBT

Terminal Kaplaması

Tin (Sn)

Current Rating Amps

15A AC

Electricallife

15,000 Cycles

Akım Değeri

15A

Seri

S400

RoHS Durumu

ROHS3 Compliant

Nem Hassasiyeti (MSL)

1 (Unlimited)

Contact Timing

BREAK-BEFORE-MAKE

Dielectric Withstanding Voltage

2000VAC V

Body Length Or Diameter

33.1978mm

JESD-609 Kodu

e3

Actuator Material

Brass, Chrome Plated

Terminal Stili

Solder Lug

Switch Type

TOGGLE SWITCH
