Adet bazlı fiyat
- 1+ adet$6.86
- 10+ adet$6.47
- 100+ adet$6.11
- 500+ adet$5.76
Sevkiyat
Stoktan aynı gün hazırlık
Orijinal ürün
Doğrulanmış tedarik
RoHS
Compliant
Destek
Teknik ekip desteği
Teknik Özellikler
- Actuatorcolor
- WHITE
- Kurşunsuz Kodu
- yes
- Ambalaj
- Tape & Reel (TR)
- Actuator Level
- Flush, Recessed
- Insulation Materials
- GLASS FILLED POLYAMIDE
- Voltage Rated Dc
- 5V
- Contact Timing
- BREAK-BEFORE-MAKE
- Body Material
- Polyamide (PA), Nylon, Glass Filled
- Contact Voltagedcmax
- 5V

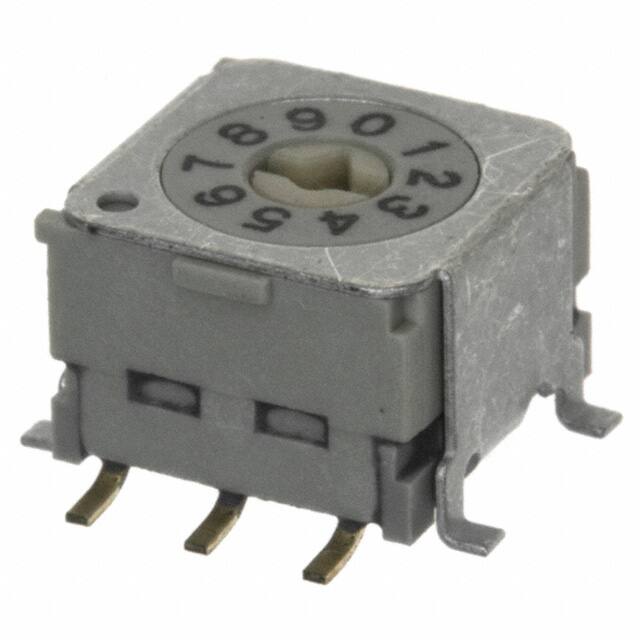

- Switch Type
- ROTARY SWITCH
- Body Height
- 5.588mm
- Pitch
- 0.100 2.54mm Full
- Terminal Material
- BRASS
- Uzunluk
- 0.320 8.13mm
- Housing Material
- GLASS FILLED POLYAMIDE
- Çalışma Sıcaklığı
- -25°C~85°C
- Current Rating Amps
- 100mA
- Contact Resistance
- 0.08mOhm
- Life Cycles
- 20000 cycles
- Contact Finish
- Gold
- RoHS Durumu
- ROHS3 Compliant
- Mechanical Life
- 20,000 Steps
- Fabrika Tedarik Süresi
- 10 Weeks
- Contact Currentdcmax
- 0.1A
- Terminal Stili
- Gull Wing
- Washable
- Yes
- Actuator Type
- Rotary for Tool
- Özellikler
- Epoxy Sealed Terminals
- Montaj Tipi
- Surface Mount
- Body Breadth
- 7.9248 mm
- Contact Materials
- Beryllium Copper
- Height Above Board
- 0.220 5.59mm
- Nominal Gerilim
- 5VDC
- Kurşunsuz
- Contains Lead
- Yayın Yılı
- 2010
- Seri
- ND3
- Nem Hassasiyeti (MSL)
- 1 (Unlimited)
- Leadbase Style
- Gull Wing
- Circuit
- BCD
- Electricallife
- 20,000 Steps
