Adet bazlı fiyat
- 1+ adet$7.53
- 10+ adet$7.10
- 100+ adet$6.70
- 500+ adet$6.32
Sevkiyat
Stoktan aynı gün hazırlık
Orijinal ürün
Doğrulanmış tedarik
RoHS
Compliant
Destek
Teknik ekip desteği

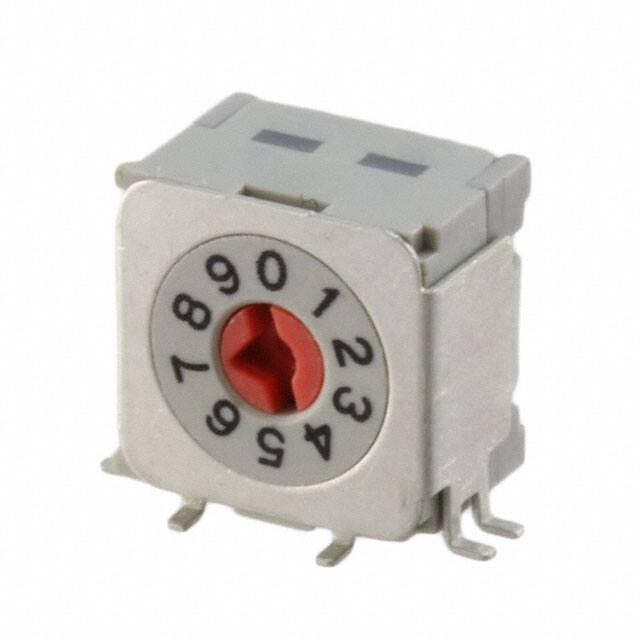

Teknik Özellikler
- JESD-609 Kodu
- e4
- Body Material
- Polyamide (PA), Nylon, Glass Filled
- Switch Type
- ROTARY CODED SWITCH
- Contact Timing
- BREAK-BEFORE-MAKE
- Insulation Materials
- GLASS FILLED POLYAMIDE
- Contact Resistance
- 0.03mOhm
- Uzunluk
- 0.320 8.13mm
- Pitch
- 0.050 1.27mm Half
- Housing Material
- GLASS FILLED REINFORCED NYLON
- Actuator Type
- Rotary for Tool
- Terminal Stili
- Gull Wing
- Solderability
- WAVE
- Kurşunsuz
- Contains Lead
- Contact Finish
- Gold
- Additional Feature
- COMPLEMENT CODED
- Akım Değeri
- 100mA
- Dielectric Withstanding Voltage
- 250VAC V
- Montaj
- Surface Mount
- Electricallife
- 20,000 Steps
- Parça Durumu
- Active
- Terminal
- Gull Wing
- Seri
- ND3
- Nem Hassasiyeti (MSL)
- 1 (Unlimited)
- Washability
- SOLVENT
- Contact Voltagedcmax
- 5V
- Ambalaj
- Tray
- Actuatorcolor
- RED
- Kurşunsuz Kodu
- yes
- Index Angle
- 36 deg
- Voltage Rated Dc
- 5V
- Actuator Level
- Flush, Recessed
- Çalışma Sıcaklığı
- -25°C~85°C
- Body Height
- 5.207mm
- Terminal Material
- BRASS
- Özellikler
- Epoxy Sealed Terminals
- Washable
- Yes
- Nominal Gerilim
- 5VDC
- Height Above Board
- 0.316 8.03mm
- Montaj Tipi
- Surface Mount, Right Angle
- Body Breadth
- 8.0264 mm
