Adet bazlı fiyat
- 1+ adet$5.90
- 10+ adet$5.57
- 100+ adet$5.25
- 500+ adet$4.96
Sevkiyat
Stoktan aynı gün hazırlık
Orijinal ürün
Doğrulanmış tedarik
RoHS
Compliant
Destek
Teknik ekip desteği
Teknik Özellikler
- Contact Finish
- Gold
- Terminal
- PC Pin
- Actuator Length
- 5.10mm
- Terminal Stili
- PC Pin
- Depth
- 7.1mm
- Çalışma Sıcaklığı
- -30°C~85°C
- Max Current Rating
- 100mA
- Max Voltage Rating Ac
- 28V
- Body Breadth
- 7.112 mm
- Yayın Yılı
- 2012

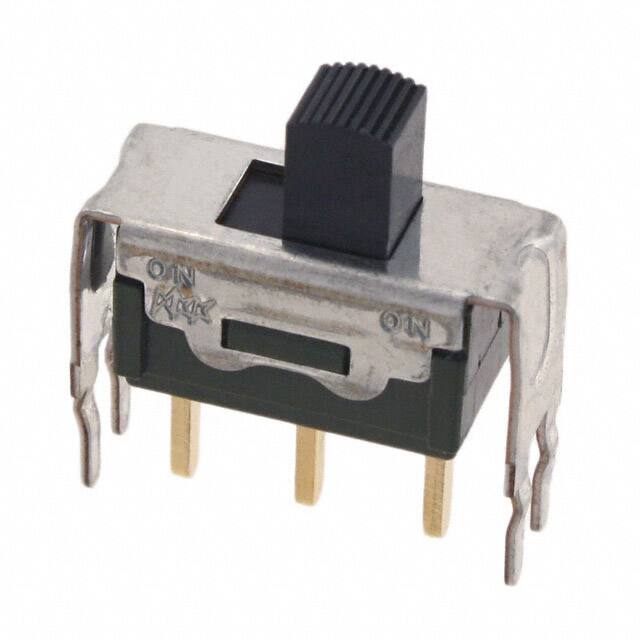

- Switch Type
- SLIDE SWITCH
- Actuator Material
- Polybutylene Terephthalate (PBT), Glass Filled
- Pcb Hole Count
- 7
- Contact Resistance
- 0.02mOhm
- Dielectric Withstanding Voltage
- 1500VAC V
- Max Voltage Rating Dc
- 28V
- Kurşunsuz Kodu
- yes
- Parça Durumu
- Active
- HTS Kodu
- 8536.50.90.50
- Kurşunsuz
- Lead Free
- Fabrika Tedarik Süresi
- 5 Weeks
- Montaj
- Through Hole
- Switch Travel
- 2.20mm
- Contact Materials
- Copper
- Current Rating Amps
- 0.4VA AC/DC
- Voltage Rated Ac
- 28V
- Housing Material
- STAINLESS STEEL
- Insulation Resistance
- 1000000000Ohm
- RoHS Durumu
- ROHS3 Compliant
- Switch Function
- On-On
- Solderability
- WAVE
- Montaj Tipi
- Through Hole
- Contact Style
- Non-Shorting
- Electricallife
- 50,000 Cycles
- Mechanical Life
- 100,000 Cycles
- Voltage Rated Dc
- 28V
- Nem Hassasiyeti (MSL)
- 1 (Unlimited)
- Insulation Materials
- GLASS FILLED DIALLYL PHTHALATE
- Contact Dc Max Power Rating R Load
- 0.4VA@28VDC
- Contact Timing
- Non-Shorting (BBM)
