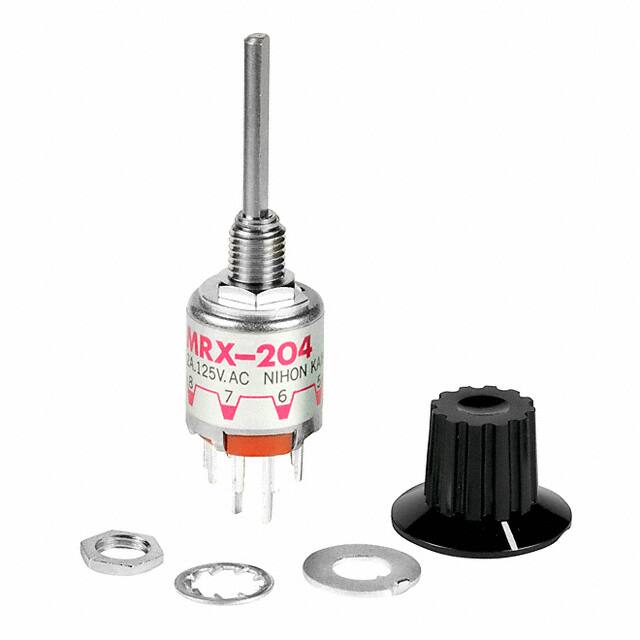

MRX204-A

Teknik Özellikler

Number Of Poles Per Deck

2

Contact Timing

Non-Shorting (BBM)

Kurşunsuz Kodu

yes

Max Voltage Rating Dc

30V

Max Current Rating

2A

Contact Materials

Silver Alloy

Max Voltage Rating Ac

125V

Pozisyon Sayısı

2 ~ 4

Actuator Material

Brass

Voltage Rated Dc

30V

Kurşunsuz

Lead Free

Özellikler

Sealed - Flux Protection

Contact Currentacmax

2A

RoHS Durumu

ROHS3 Compliant

Contact Style

Non-Shorting

Fabrika Tedarik Süresi

5 Weeks

Operating Force

3.059 ~ 15gfm

Switch Type

ROTARY SWITCH

Illumination Type

Illuminated, Non-Illuminated

Number Of Decks

1

Reach Svhc

No SVHC

Depth Behind Panel

27.30mm

Panel Cutout Dimensions

Circular - 6.35mm Dia

Maks. Çalışma Sıcaklığı

70°C

Uzunluk

14mm

Actuator Finish

NICKEL

Actuator Type

Knob

Contact Plating

Silver

Terminal Stili

PC Pin

ECCN Kodu

EAR99

Index Stops

Adjustable

Min. Çalışma Sıcaklığı

-10°C

Montaj

Panel, Through Hole

Contact Currentdcmax

1A

Pcb Hole Count

9

Depth

14mm

Renk

Black

Nem Hassasiyeti (MSL)

1 (Unlimited)

Throw Configuration

DP, DP4T, DPST

Montaj Tipi

Panel Mount, Through Hole
