Adet bazlı fiyat
- 1+ adet$12.14
- 10+ adet$11.45
- 100+ adet$10.81
- 500+ adet$10.19
Sevkiyat
Stoktan aynı gün hazırlık
Orijinal ürün
Doğrulanmış tedarik
RoHS
Compliant
Destek
Teknik ekip desteği
Teknik Özellikler
- ECCN Kodu
- EAR99
- Current Rating Amps
- 0.4VA AC/DC
- Parça Durumu
- Active
- Fabrika Tedarik Süresi
- 9 Weeks
- Contact Materials
- Phosphor Bronze
- Nem Hassasiyeti (MSL)
- 1 (Unlimited)
- Actuator Material
- Brass
- Terminal Stili
- PC Pin
- Contact Resistance
- 50mOhm
- Index Stops
- Adjustable

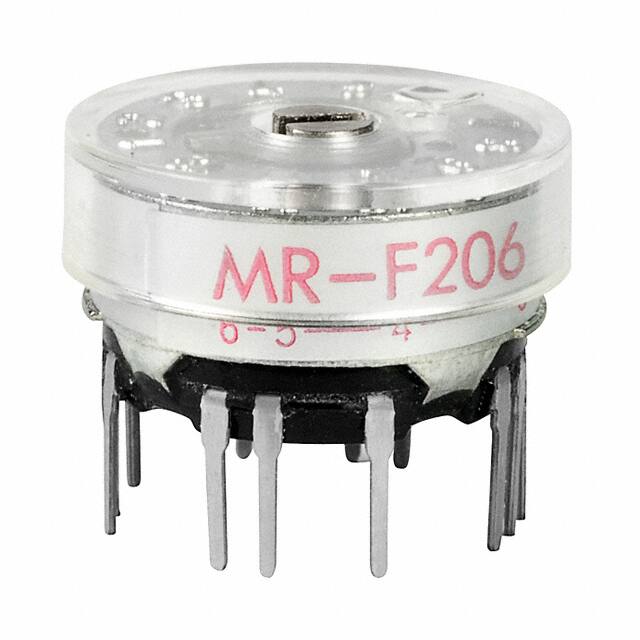

- Switch Type
- ROTARY SWITCH
- Pozisyon Sayısı
- 2 ~ 6
- Uzunluk
- 14mm
- Yükseklik
- 8.2mm
- Kurşunsuz
- Lead Free
- Çap
- 14mm
- Montaj
- PCB, Through Hole
- Index Angle
- 30 °
- Insulation Resistance
- 100MOhm
- Depth
- 14mm
- Contact Finish
- Gold
- Number Of Decks
- 1
- Actuator Type
- Screwdriver Slot
- Illumination Type
- Illuminated
- Number Of Poles
- 2
- Voltage Rated Dc
- 28V
- Renk
- Black
- Actuator Length
- Flush
- Kurşunsuz Kodu
- yes
- Voltage Rated Ac
- 28V
- Dielectric Withstanding Voltage
- 500VAC V
- Housing Material
- Polyamide
- Max Current Rating
- 100mA
- Operating Force
- 0.510 ~ 2.039gfm
- Terminal
- PC Pin
- RoHS Durumu
- ROHS3 Compliant
- Solderability
- WAVE
- Circuit Per Deck
- DP6T
- Contact Timing
- Non-Shorting (BBM)
- Yayın Yılı
- 2006
