Adet bazlı fiyat
- 1+ adet$18.36
- 10+ adet$17.32
- 100+ adet$16.34
- 500+ adet$15.42
Sevkiyat
Stoktan aynı gün hazırlık
Orijinal ürün
Doğrulanmış tedarik
RoHS
Compliant
Destek
Teknik ekip desteği

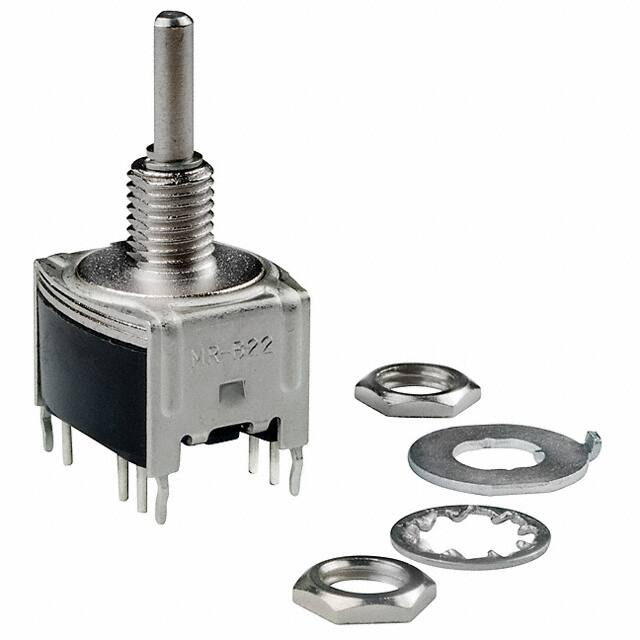

Teknik Özellikler
- Index Stops
- Fixed
- Actuator Material
- Brass
- Seri
- MRB
- Montaj
- Panel, Through Hole
- Dielectric Withstanding Voltage
- 500VAC V
- Contact Timing
- Non-Shorting (BBM)
- Kurşunsuz Kodu
- yes
- Voltage Rated Dc
- 28V
- Housing Material
- Polyamide
- Current Rating Amps
- 0.4VA AC/DC
- Circuit Per Deck
- DPDT
- Contact Style
- Non-Shorting
- Contact Resistance
- 0.08mOhm
- Operating Force
- 4.079gfm
- Contact Plating
- Gold, Tin
- Depth Behind Panel
- 11.00mm
- Actuator Type
- Flatted (3.17mm Dia)
- Actuator Length
- 10.00mm
- Min. Çalışma Sıcaklığı
- -10°C
- Max Current Rating
- 100mA
- Parça Durumu
- Active
- Terminal Stili
- PC Pin
- Illumination Type
- Non-Illuminated
- Bushing Type
- M6P0.75
- Depth
- 14.5mm
- Voltage Rated Ac
- 28V
- Max Voltage Rating Dc
- 28V
- RoHS Durumu
- ROHS3 Compliant
- Contact Materials
- Beryllium Copper
- Switch Type
- ROTARY SWITCH
- Solderability
- WAVE
- Yayın Yılı
- 2010
- Pcb Hole Count
- 10
- Contact Finish
- Gold
- Kurşunsuz
- Lead Free
- Terminal
- PC Pin
- Max Voltage Rating Ac
- 28V
- Maks. Çalışma Sıcaklığı
- 70°C
- Özellikler
- Sealed - Fully
- Panel Cutout Dimensions
- Circular - 6.35mm Dia
