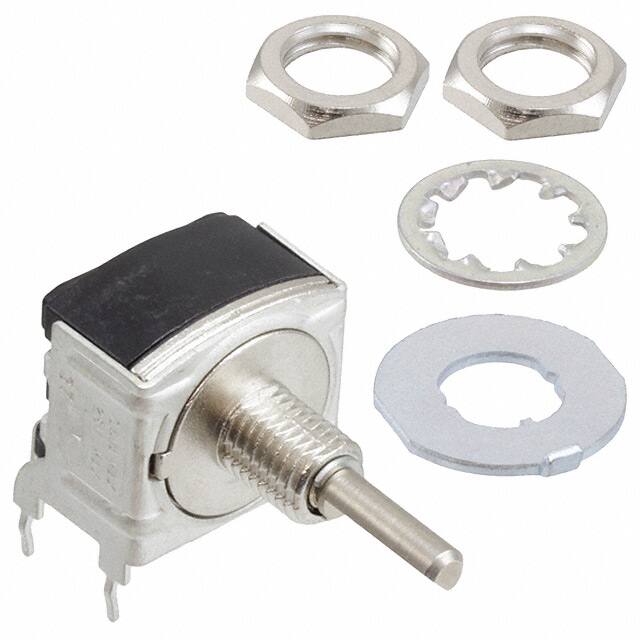

MRB12H

Teknik Özellikler

Terminal

PC Pins

Maks. Çalışma Sıcaklığı

70°C

Max Voltage Rating Ac

28V

Circuit Per Deck

SPDT

Panel Cutout Dimensions

Circular - 6.35mm Dia

Contact Style

Non-Shorting

Özellikler

Sealed - Fully

Current Rating Amps

0.4VA AC/DC

Nem Hassasiyeti (MSL)

1 (Unlimited)

Operating Force

4.079gfm

Pozisyon Sayısı

2

Contact Resistance

0.08mOhm

Fabrika Tedarik Süresi

12 Weeks

Montaj Tipi

Panel Mount, Through Hole, Right Angle

Uzunluk

15.74mm

Index Angle

90 °

Depth Behind Panel

12.56mm

Contact Plating

Gold, Tin

Number Of Decks

1

Contact Function

ON-ON

Actuator Type

Flatted (3.17mm Dia)

Power Rating

400mW

Max Current Rating

100mA

Parça Durumu

Active

Min. Çalışma Sıcaklığı

-10°C

Actuator Length

10.00mm

Bushing Type

M6P0.75

Orientation

Right Angle

Terminal Stili

PC Pin

Index Stops

Fixed

Max Voltage Rating Dc

28V

Seri

MRB

Actuator Material

Brass

Voltage Rated Ac

28V

Solderability

WAVE

Switch Type

ROTARY SWITCH

Dielectric Withstanding Voltage

500VAC V

Contact Materials

Beryllium Copper

RoHS Durumu

ROHS3 Compliant

Montaj

Panel, Through Hole
