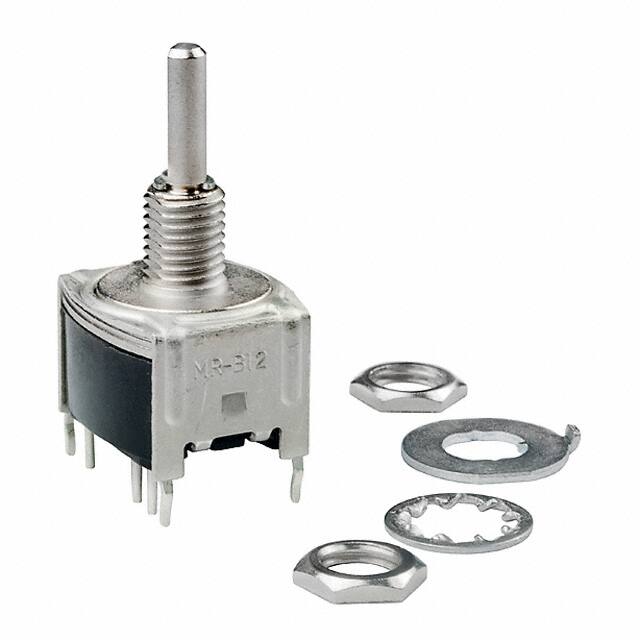

MRB12B

Teknik Özellikler

Yayın Yılı

2010

Contact Finish

Gold

Pcb Hole Count

7

Bushing Type

M6P0.75

Illumination Type

Illuminated

Terminal Stili

PC Pin

Switch Type

ROTARY SWITCH

Solderability

WAVE

RoHS Durumu

ROHS3 Compliant

Contact Materials

Beryllium Copper

Max Voltage Rating Dc

28V

Depth

14.5mm

Voltage Rated Ac

28V

Uzunluk

15.74mm

Contact Function

ON-ON

Number Of Decks

1

Index Angle

90 °

Fabrika Tedarik Süresi

9 Weeks

Montaj Tipi

Panel Mount, Through Hole

Reach Svhc

No SVHC

Maks. Çalışma Sıcaklığı

70°C

Max Voltage Rating Ac

28V

Terminal

PC Pin

Kurşunsuz

Contains Lead

Nem Hassasiyeti (MSL)

1 (Unlimited)

Pozisyon Sayısı

2

Panel Cutout Dimensions

Circular - 6.35mm Dia

Özellikler

Sealed - Fully

Voltage Rated Dc

28V

Kurşunsuz Kodu

yes

Contact Timing

Non-Shorting (BBM)

Housing Material

Polyamide

Index Stops

Fixed

Montaj

Panel, Through Hole

ECCN Kodu

EAR99

Terminal Kaplaması

Tin (Sn)

Dielectric Withstanding Voltage

500VAC V

Actuator Material

Brass

Seri

MRB

Depth Behind Panel

11.00mm
