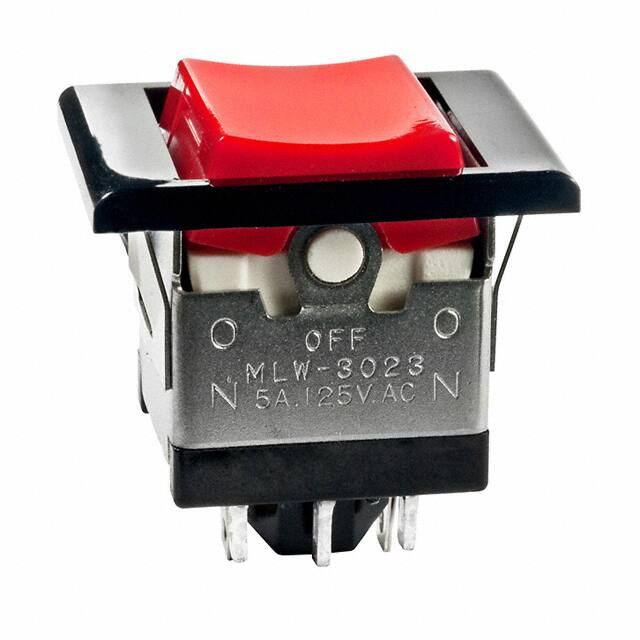

MLW3023-12-RC-1A

Teknik Özellikler

Length Termination

0.157 inch

Kurşunsuz Kodu

yes

Illumination Type Color

Incandescent, Red

Seri

MLW

Switch Type

ROCKER SWITCH

Orientation

Vertical

Parça Durumu

Obsolete

Illumination Type

Illuminated

Insulation Resistance

200000000Ohm

Montaj Tipi

Panel Mount, Snap-In

Actuator Angle

28 deg

Terminal Stili

Solder Lug

Terminal Material

COPPER

Çalışma Sıcaklığı

-10°C~50°C

Actuator Type

Concave (Curved) - Illuminated

Akım Değeri

3A

Circuit

DPDT

Additional Feature

12 VOLT LAMPS

Actuator Length

0.213 inch

Color Actuatorcap

Red

Contact Currentdcmax

3A

Reach Svhc

No SVHC

Electricallife

10,000 Cycles

Housing Material

Stainless Steel

Contact Voltageacmax

250V

Contact Currentacmax

3A

Solderability

HAND

Panel Cutout Dimensions

Rectangular - 18.70mm x 16.70mm

Actuator Marking

No Marking

Özellikler

Epoxy Sealed Terminals

Current Rating Amps

5A AC 3A DC

Fabrika Tedarik Süresi

8 Weeks

Dielectric Withstanding Voltage

1500VAC V

Voltage Rated Ac

125V

Body Height

16.1036mm

Nem Hassasiyeti (MSL)

1 (Unlimited)

Voltage Rated Dc

30V

Yayın Yılı

2012

Contact Current Rating

5A

Mechanical Life

30,000 Cycles
