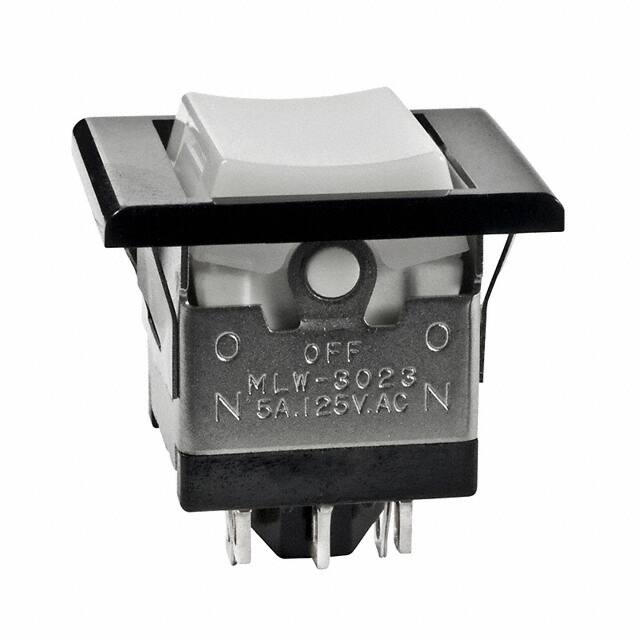

MLW3023-12-RB-1A

Teknik Özellikler

Montaj Tipi

Panel Mount, Snap-In

Actuator Angle

28 deg

Parça Durumu

Obsolete

Illumination Type

Illuminated

Insulation Resistance

200000000Ohm

Switch Type

ROCKER SWITCH

Fabrika Tedarik Süresi

8 Weeks

Current Rating Amps

5A AC 3A DC

Illumination Type Color

Incandescent, White

Seri

MLW

Length Termination

0.157 inch

Kurşunsuz Kodu

yes

Akım Değeri

3A

Actuator Type

Concave (Curved) - Illuminated

Yayın Yılı

2012

Çalışma Sıcaklığı

-10°C~50°C

Voltage Rated Dc

30V

Terminal Material

COPPER

Nem Hassasiyeti (MSL)

1 (Unlimited)

Voltage Rated Ac

125V

Body Height

16.1036mm

Terminal Stili

Solder Lug

Dielectric Withstanding Voltage

1500VAC V

Switch Function

On-Off-On

RoHS Durumu

ROHS3 Compliant

Ambalaj

Bulk

Mechanical Life

30,000 Cycles

Actuator Length

0.213 inch

Additional Feature

12 VOLT LAMPS

Circuit

DPDT

Actuator Marking

No Marking

Özellikler

Epoxy Sealed Terminals

Montaj

Panel, Snap in

Contact Plating

Silver

Panel Cutout Dimensions

Rectangular - 18.70mm x 16.70mm

Solderability

HAND

Body Breadth

16.6116 mm

Contact Voltageacmax

250V

Terminal

Solder

Contact Currentacmax

3A
