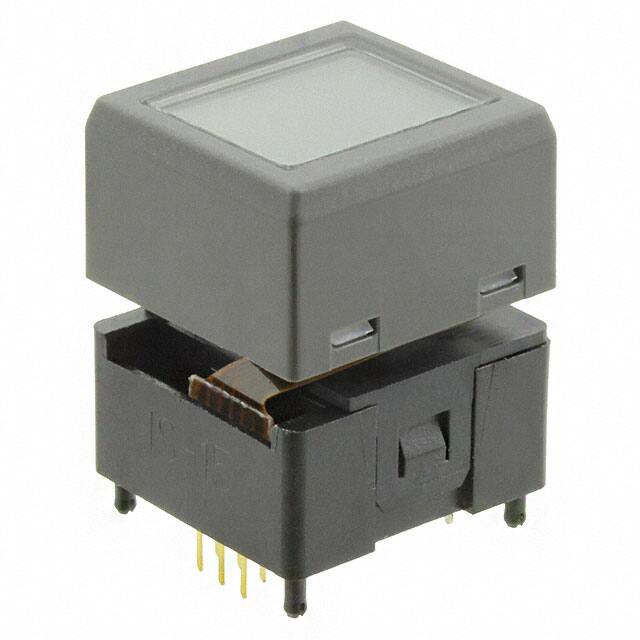

IS15ESBFP4RGB

Teknik Özellikler

RoHS Durumu

ROHS3 Compliant

Contact Current Rating

100mA

Display Type

LCD

Contact Currentdcmax

0.1A

Sealing

EPOXY

ECCN Kodu

EAR99

Face Size

19.0mm Lx18.0mm W

Led Forward Voltage

2.0 2.8 2.8VDC

Contact Rating Voltage

0.1A @ 12VDC

Illumination

LED

Terminal

PC Pin

Seri

SmartDisplay™

HTS Kodu

8536.50.90.31

Kurşunsuz Kodu

yes

Pixel Format

64 x 32

Contact Dc Max Rating R Load

0.1A@12VDC

Insulation Resistance

100000000Ohm

Tip

Pushbutton, LCD

Switch Function

Off-Mom

Nem Hassasiyeti (MSL)

1 (Unlimited)

Yayın Yılı

2013

Electricallife

3000000 Cycle(s)

Montaj Tipi

Through Hole

Style

Compact, High Resolution

Circuit

SPST-NO

Contact Resistance

0.2mOhm

Actuator Travel

4.4958 mm

Operating Force

173gf

Renk

Blue, Green, Red

Contact Function

OFF-(ON)

Travel Range

1.8mm

Viewing Area Height

11.8mm

Montaj

Through Hole

Throw Configuration

SPST

Terminal Stili

PC Pin

Display Mode

Black and White, FSTN Positive

Çalışma Sıcaklığı

-15°C~50°C

Viewing Area

14.5mm L x 11.8mm W

Kurşunsuz

Lead Free

Reach Svhc

No SVHC
