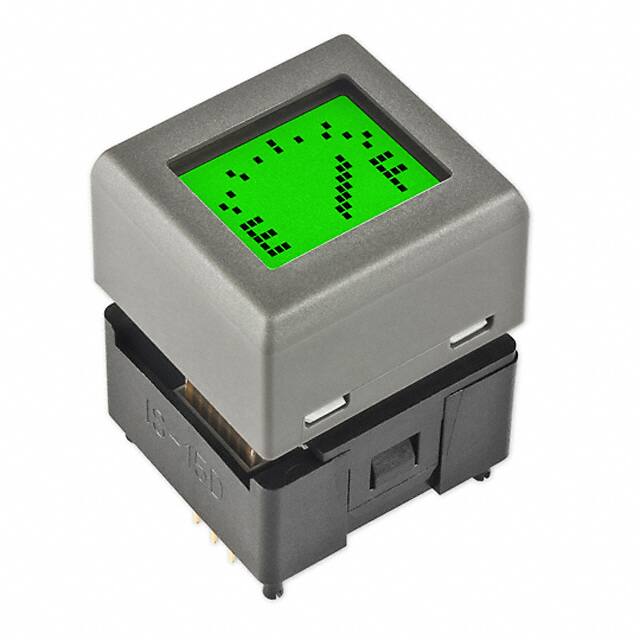

IS15DSBFP4RGB

Teknik Özellikler

Maks. Çalışma Sıcaklığı

50°C

RoHS Durumu

RoHS Compliant

Display Type

LCD

Led Forward Voltage

2.1 3.3 3.3VDC

Uzunluk

18mm

Face Size

19.0mm Lx18.0mm W

Contact Rating Voltage

0.1A @ 12VDC

Max Current Rating

100mA

Terminal

PC Pin

Seri

SmartDisplay™

Illumination Type

LED

Pixel Format

64 x 32

Operating Force

173gf

Renk

Blue, Green, Red

Switch Function

Off-Mom

Tip

Pushbutton, LCD

Nem Hassasiyeti (MSL)

1 (Unlimited)

Yayın Yılı

2010

Montaj Tipi

Through Hole

Style

Compact, High Resolution

Circuit

SPST-NO

Throw Configuration

SPST

Contact Materials

Gold

Terminal Stili

PC Pin

Max Voltage Rating Dc

12V

Illumination Color

Blue, Green, Red

Display Mode

Black and White, FSTN Positive

Viewing Area

13.0mm L x 10.7mm W

Çalışma Sıcaklığı

-15°C~50°C

Travel Range

1.8mm

Montaj

Through Hole

Min. Çalışma Sıcaklığı

-15°C

Led Color

Red - Green - Blue

Besleme Gerilimi

4.9V~5.1VDC

Parça Durumu

Obsolete

Ambalaj

Bulk

Reach Svhc

Unknown

Kurşunsuz

Lead Free

Led Forward Current

10 10 10mA

Depth

19mm
