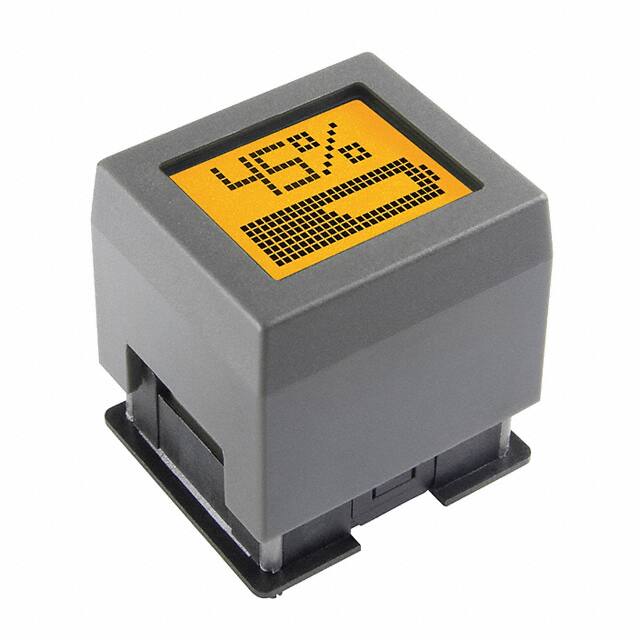

IS15DBFP4RGB

Teknik Özellikler

Display Type

LCD

Contact Current Rating

100mA

RoHS Durumu

RoHS Compliant

Maks. Çalışma Sıcaklığı

50°C

Face Size

23.13mm Lx20.59mm W

Led Forward Voltage

2.1 3.3 3.3VDC

Seri

SmartDisplay™

Terminal

PC Pins

Contact Rating Voltage

0.1A @ 12VDC

Max Current Rating

100mA

Pixel Format

64 x 32

Illumination Type

LED

Circuit

SPST-NO

Style

Standard, High Resolution

Montaj Tipi

Through Hole

Yayın Yılı

2010

Nem Hassasiyeti (MSL)

1 (Unlimited)

Switch Function

Off-Mom

Tip

Pushbutton, LCD

Renk

Blue, Green, Red

Operating Force

204gf

Montaj

Through Hole

Travel Range

4.5mm

Çalışma Sıcaklığı

-15°C~50°C

Viewing Area

15.0mm L x 10.8mm W

Display Mode

Black and White, FSTN Positive

Illumination Color

Blue, Green, Red

Terminal Stili

PC Pin

Max Voltage Rating Dc

12V

Throw Configuration

SPST

Contact Materials

Gold

Led Forward Current

10 10 10mA

Reach Svhc

Unknown

Kurşunsuz

Lead Free

Ambalaj

Bulk

Parça Durumu

Obsolete

Besleme Gerilimi

4.9V~5.1VDC

Led Color

Red - Green - Blue

Min. Çalışma Sıcaklığı

-15°C
