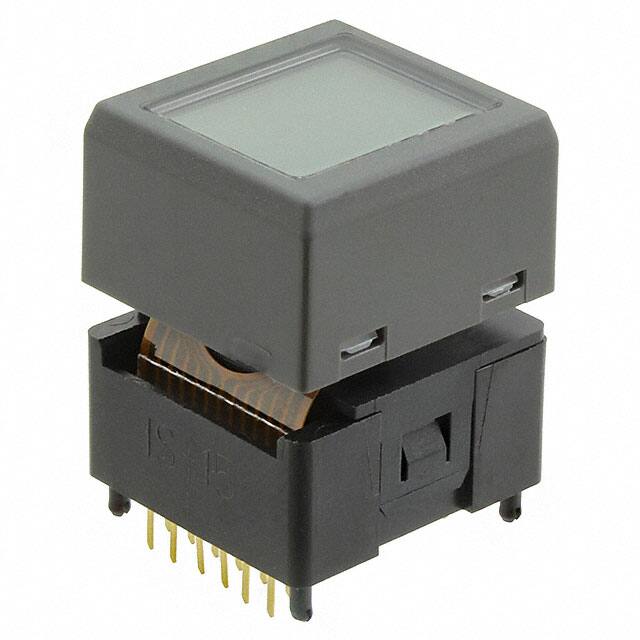

IS15BSBFP4RGB

Teknik Özellikler

Display Mode

Black and White, FSTN Positive

Viewing Area

14.5mm L x 11.8mm W

Çalışma Sıcaklığı

-15°C~50°C

Throw Configuration

SPST

Terminal Stili

PC Pin

Montaj

Through Hole

Contact Function

OFF-(ON)

Travel Range

1.8mm

Operating Force

173gf

Renk

Blue, Green, Red

Contact Resistance

0.2mOhm

Actuator Travel

4.4958 mm

Style

Compact

Circuit

SPST-NO

Tip

Pushbutton, LCD

Switch Function

Off-Mom

Nem Hassasiyeti (MSL)

1 (Unlimited)

Yayın Yılı

2013

Electricallife

3000000 Cycle(s)

Montaj Tipi

Through Hole

Fabrika Tedarik Süresi

15 Weeks

Besleme Gerilimi

3.0V~5.5VDC

Ambalaj

Bulk

Parça Durumu

Active

Led Color

Red - Green - Blue

Kurşunsuz

Lead Free

Led Forward Current

10 8.5 8mA

Led Forward Voltage

2.0 2.8 2.8VDC

ECCN Kodu

EAR99

Face Size

19.0mm Lx18.0mm W

Sealing

EPOXY

Contact Currentdcmax

0.1A

RoHS Durumu

ROHS3 Compliant

Contact Dc Max Rating R Load

0.1A@12VDC

Insulation Resistance

100000000Ohm

Pixel Format

36 x 24

Kurşunsuz Kodu

yes

Terminal

PC Pin

Seri

SmartDisplay™

Contact Rating Voltage

0.1A @ 12VDC
