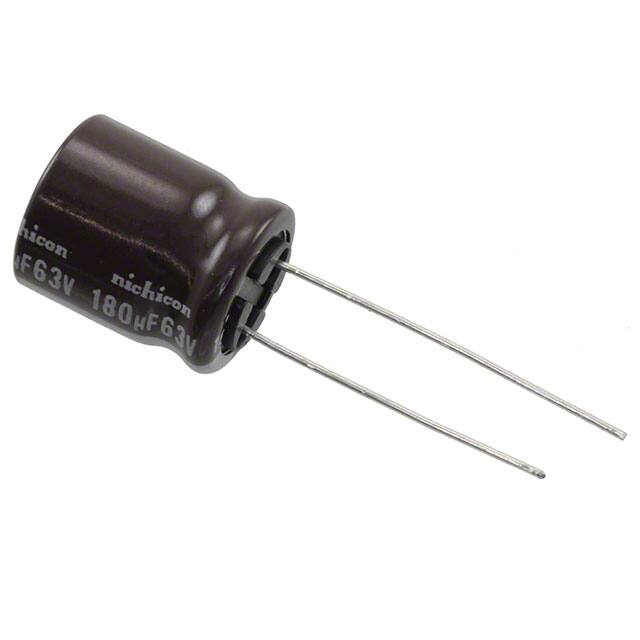

UPW1J181MHD6TO

Teknik Özellikler

Reach Svhc

No SVHC

Tolerans

±20%

HTS Kodu

8532.22.00

ECCN Kodu

EAR99

Lead Pitch

5.0038mm

Terminal Shape

WIRE

Terminal

Radial

Montaj

Through Hole

Terminal Kaplaması

Matte Tin (Sn)

Tan Delta

0.09

Lifetime Temp

7000 Hrs @ 105°C

Ambalaj

Cut Tape (CT)

Çap

12.5mm

RoHS Durumu

ROHS3 Compliant

Maks. Oturma Yüksekliği

0.650 16.50mm

Kılıf / Paket

Radial, Can

Nem Hassasiyeti (MSL)

1 (Unlimited)

Ripple Current High Frequency

1.02A @ 100kHz

Polarization

Polar

Boyut / Ölçü

0.492Dia 12.50mm

JESD-609 Kodu

e3

Voltage Rated Dc

63V

Çalışma Sıcaklığı

-55°C~105°C

Esr Equivalent Series Resistance

300mOhm

Kapasitans

180μF

Capacitor Type

ALUMINUM ELECTROLYTIC CAPACITOR

Ripple Current Low Frequency

663mA @ 120Hz

Yayın Yılı

2009

Lead Spacing

0.197 5.00mm

Empedans

150mOhm

Kurşunsuz Kodu

yes

Leakage Current

0.3402mA

Ripple Current

663mA

Terminal Sayısı

2

Seri

UPW

Applications

General Purpose

Fabrika Tedarik Süresi

17 Weeks

Yükseklik

15mm

Dielectric Material

Aluminium

Packing Method

AMMO PACK
