Adet bazlı fiyat
- 1+ adet$0.12
- 10+ adet$0.11
- 100+ adet$0.11
- 500+ adet$0.10
Sevkiyat
Stoktan aynı gün hazırlık
Orijinal ürün
Doğrulanmış tedarik
RoHS
Compliant
Destek
Teknik ekip desteği

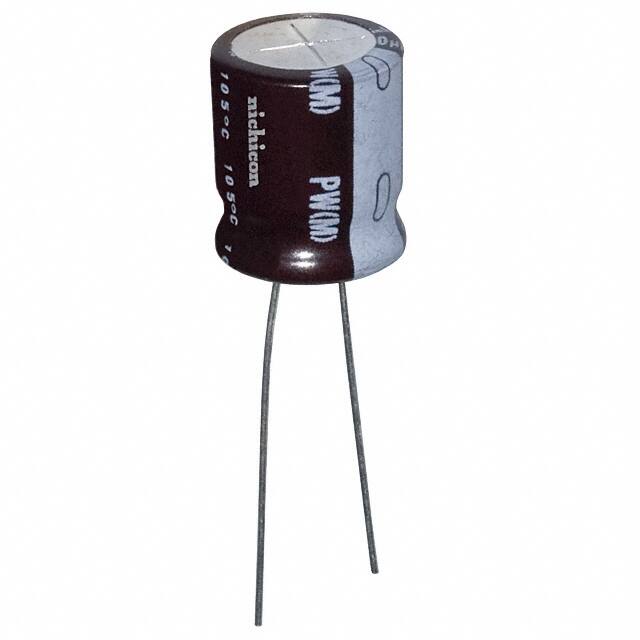

Teknik Özellikler
- Kapasitans
- 470μF
- Esr Equivalent Series Resistance
- 170mOhm
- Çalışma Sıcaklığı
- -55°C~105°C
- Voltage Rated Dc
- 16V
- Lead Spacing
- 0.138 3.50mm
- Yayın Yılı
- 2009
- Ripple Current Low Frequency
- 547.5mA @ 120Hz
- Capacitor Type
- ALUMINUM ELECTROLYTIC CAPACITOR
- Lead Diameter
- 600 μm
- Maks. Oturma Yüksekliği
- 0.591 15.00mm
- JESD-609 Kodu
- e3
- Ripple Current High Frequency
- 730mA @ 100kHz
- Polarization
- Polar
- Boyut / Ölçü
- 0.315Dia 8.00mm
- Radyasyon Dayanımı
- No
- Nem Hassasiyeti (MSL)
- 1 (Unlimited)
- Kılıf / Paket
- Radial, Can
- Packing Method
- TAPE
- Dielectric Material
- Aluminium
- Yükseklik
- 15mm
- Dissipation Factor
- 0.16 %
- Fabrika Tedarik Süresi
- 19 Weeks
- Life Hours
- 5000 hours
- Parça Durumu
- Active
- Montaj Tipi
- Through Hole
- Leakage Current
- 225.6μA
- Empedans
- 85mOhm
- Kurşunsuz Kodu
- yes
- Applications
- General Purpose
- Seri
- UPW
- Terminal Sayısı
- 2
- Ripple Current
- 730mA
- Terminal
- Radial
- Terminal Shape
- WIRE
- Montaj
- PCB, Through Hole
- Contact Plating
- Tin
- Kurşunsuz
- Lead Free
- ECCN Kodu
- EAR99
- Tolerans
- ±20%
- HTS Kodu
- 8532.22.00
