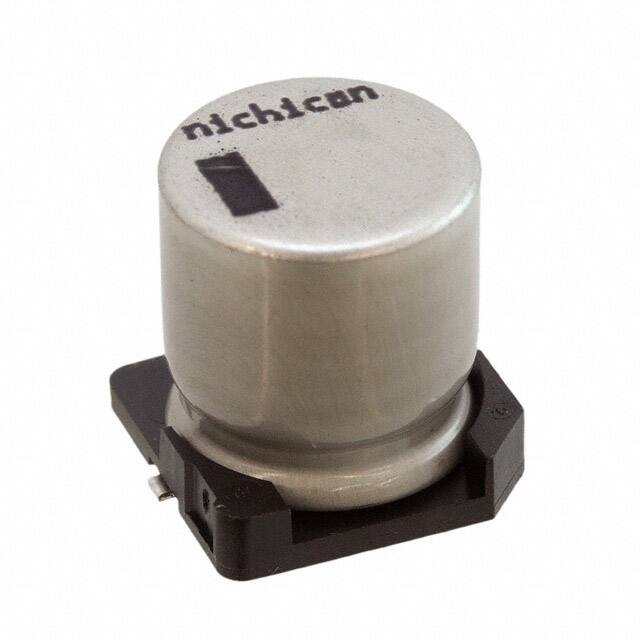

UCD1V681MNQ1MS

Teknik Özellikler

Çap

12.5mm

HTS Kodu

8532.22.00

Montaj

Surface Mount

Dissipation Factor

0.12 %

Surface Mount Land Size

0.535Lx0.535W 13.60mmx13.60mm

RoHS Durumu

ROHS3 Compliant

Gerilim

35V

Leakage Current

3μA

Radyasyon Dayanımı

No

Terminal Sayısı

2

Ripple Current

1.1A

Ambalaj

Tape & Reel (TR)

Ratings

AEC-Q200

Kılıf / Paket

Radial, Can - SMD

Dielectric Material

ALUMINUM (WET)

Terminal Shape

FLAT

Seri

UCD

Lifetime Temp

5000 Hrs @ 105°C

Ripple Current High Frequency

1.1A @ 100kHz

Polarization

Polar

Fabrika Tedarik Süresi

24 Weeks

Voltage Rated Dc

35V

JESD-609 Kodu

e3

Parça Durumu

Active

Tolerans

±20%

Uzunluk

14.6mm

Çalışma Sıcaklığı

-55°C~105°C

Life Hours

5000 hours

Ripple Current Low Frequency

550mA @ 120Hz

ECCN Kodu

EAR99

Genişlik

13.6mm

Kapasitans

680μF

Terminal

SMD/SMT

Size Code

5454

Özellikler

General Purpose

Contact Plating

Tin

Applications

Automotive

Nem Hassasiyeti (MSL)

1 (Unlimited)

Capacitor Type

ALUMINUM ELECTROLYTIC CAPACITOR

Empedans

80mOhm
