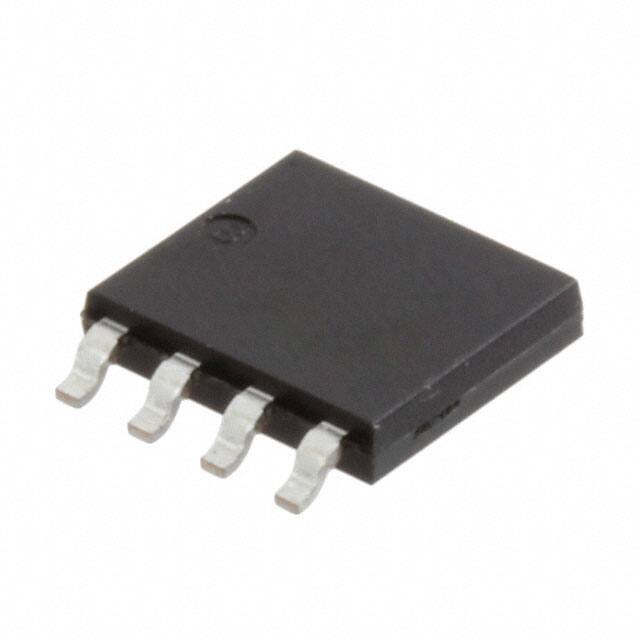

PHPT610035NKX

Teknik Özellikler

Seri

*

Terminal Formu

GULL WING

Kılıf / Paket

SOT-1205, 8-LFPAK56

Ürün Durumu

Active

Ambalaj

Tape & Reel (TR)

Dc Current Gain Hfe Min Ic Vce

80 @ 1A 10V

Reference Standard

AEC-Q101; IEC-60134

Polaritychannel Type

NPN

Vce Saturation Max Ib Ic

330mV @ 300mA, 3A

Fabrika Tedarik Süresi

20 Weeks

Transistor Element Material

SILICON

Configuration

SEPARATE, 2 ELEMENTS

RoHS Durumu

ROHS3 Compliant

Pin Sayısı

8

REACH Uyumluluk Kodu

not_compliant

Frequency Transition

140MHz

Collectoremitter Breakdown Voltage

100V

Montaj

Surface Mount

Max Breakdown Voltage

100V

Terminal Sayısı

6

Current Collector Cutoff Max

100nA

Case Connection

COLLECTOR

Transition Frequency

140MHz

Nem Hassasiyeti (MSL)

1 (Unlimited)

Number Of Elements

2

Paket

Bulk

Transistor Type

2 NPN (Dual)

Montaj Tipi

Surface Mount

Yayın Yılı

2014

Max Power Dissipation

1.25W

Collector Emitter Voltage Vceo

330mV

Jesd30 Code

R-PDSO-G6

Tepe Reflow Sıcaklığı (°C)

NOT SPECIFIED

JESD-609 Kodu

e3

Tepe Reflow Süresi (maks. sn)

NOT SPECIFIED

Transistor Application

SWITCHING

Parça Durumu

Active

Power Max

1.25W

Terminal Kaplaması

Matte Tin (Sn)

Max Collector Current

3A
