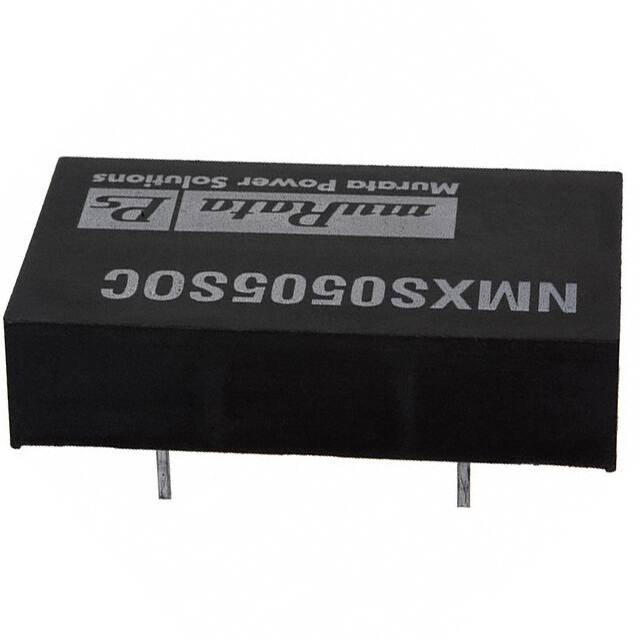

NMXS0505SOC

Teknik Özellikler

Flammability Rating

UL94 V-0

Montaj

Through Hole

Max Input Voltage Dc

5.5V

Input Voltagenom

5V

Montaj Tipi

Through Hole

Pin Sayısı

4

ECCN Kodu

EAR99

Radyasyon Dayanımı

No

JESD-609 Kodu

e3

Output Power

5W

Çalışma Sıcaklığı

0°C~70°C

Number Of Outputs

1

Voltage Isolation

1kV

Output Current

1A

Max Output Current

1A

Ambalaj

Tube

Output Voltage

5V

Parça Durumu

Obsolete

Nem Hassasiyeti (MSL)

1 (Unlimited)

Terminal Kaplaması

MATTE TIN OVER NICKEL

Reach Svhc

No SVHC

Kılıf / Paket

5-DIP Module

Seri

NMXSO (5W)

Genişlik

23.5mm

Tip

Isolated Module

Trimadjustable Output

NO

Efficiency

65%

Yükseklik

10mm

Min Input Voltage Dc

4.5V

Applications

ITE (Commercial)

Nominal Output Voltage

5V

RoHS Durumu

RoHS Compliant

Current Output1

1A

Terminal Formu

PIN/PEG

Power Rating

5W

Depth

40.5mm

Nominal Input Voltage

5V

Max Power Dissipation

5W

Max Output Power

5W

Isolation

Isolated
