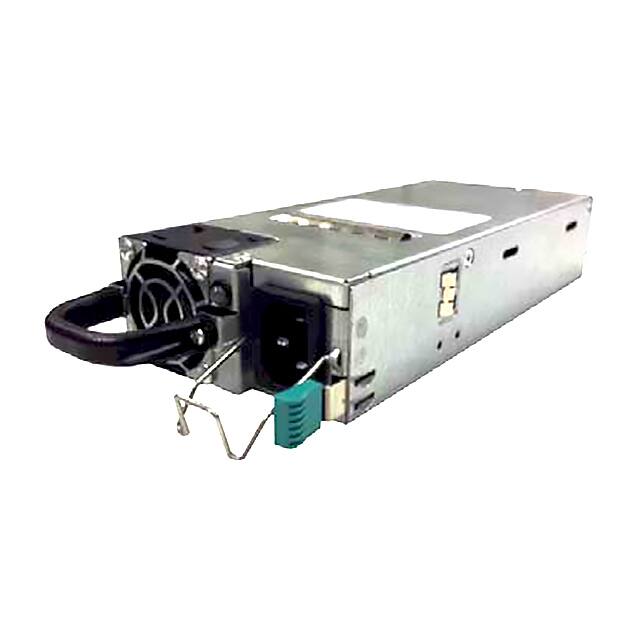

D1U86P-W-1600-12-HB4DC

Teknik Özellikler

Genişlik

86.4mm

Özellikler

Hot Swappable, I²C™ Interface, Load Sharing, PFC, PMBus™, Remote On/Off, Standby Output, Universal Input

Yükseklik

39.878mm

Number Of Outputs

1

Ripple Voltage Main Out

0.04242Vrms

Boyut / Ölçü

7.75Lx3.40W x 1.57 H 196.9mmx86.4mmx39.9mm

Voltage Isolation

3kV

Onay Kuruluşu

CB, cCSAus, CE, TUVgs

Parça Durumu

Active

RoHS Durumu

RoHS Compliant

Max Output Power

1.6kW

Applications

ITE (Commercial)

Nem Hassasiyeti (MSL)

Not Applicable

Tip

Front End

Output Voltage

12V

Protections

OUTPUT OVER CURRENT; OUTPUT OVER VOLTAGE; THERMAL

Montaj

Rack

Montaj Tipi

Rack Mount

Fabrika Tedarik Süresi

30 Weeks

Efficiency

94%

Max Output Current

133.3A

Max Current Rating

14.1A

Max Power Dissipation

1.6kW

Seri

D1U86P-W-1600 (1600W)

Çalışma Sıcaklığı

-40°C~85°C With Derating

Güç (Watt)

1600W

Usage Level

Commercial grade
