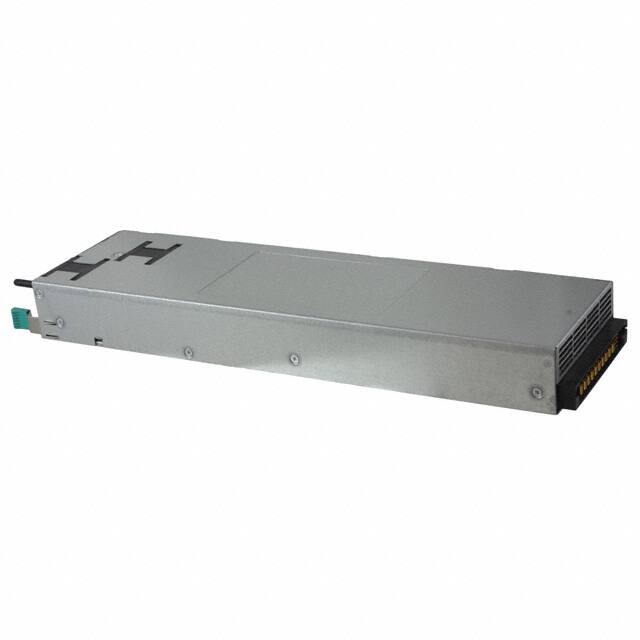

D1U4CS-W-2200-12-HA4C

Teknik Özellikler

Current Output1

180A

Yükseklik

39.878mm

Number Of Outputs

2

Boyut / Ölçü

11.00Lx3.20W x 1.57 H 279.4mmx81.3mmx39.9mm

Ripple Voltage Main Out

0.06363Vrms

Warmup Time

0.15 s

Additional Feature

REMOTE SHUTDOWN

Output Power

2.2kW

Current Output2

5A

Özellikler

Hot Swappable, I²C™ Interface, Load Sharing, PFC, PMBus™, Remote Sense, Standby Output, Universal Input

Genişlik

101.6mm

Kılıf / Paket

Module

Power Rating

2.2kW

Fabrika Tedarik Süresi

30 Weeks

Max Output Current

5A

Efficiency

93%

Montaj Tipi

Rack Mount

Depth

104mm

Montaj

Desktop, Rack

Output Current

180A

Ambalaj

Bulk

Çalışma Sıcaklığı

-10°C~55°C

Seri

D1U4CS-W-2200 (2200W)

Max Power Dissipation

830W

Parça Durumu

Active

RoHS Durumu

RoHS Compliant

Onay Kuruluşu

CB, cCSAus, CE, TUV

Voltage Isolation

3kV

Protections

OUTPUT OVER CURRENT; OUTPUT OVER VOLTAGE

Output Voltage

12V

Radyasyon Dayanımı

No

Uzunluk

355.6mm

Max Output Power

2.2kW

Tip

Front End

Nem Hassasiyeti (MSL)

Not Applicable

Applications

ITE (Commercial)

Voltage Output2

5V
