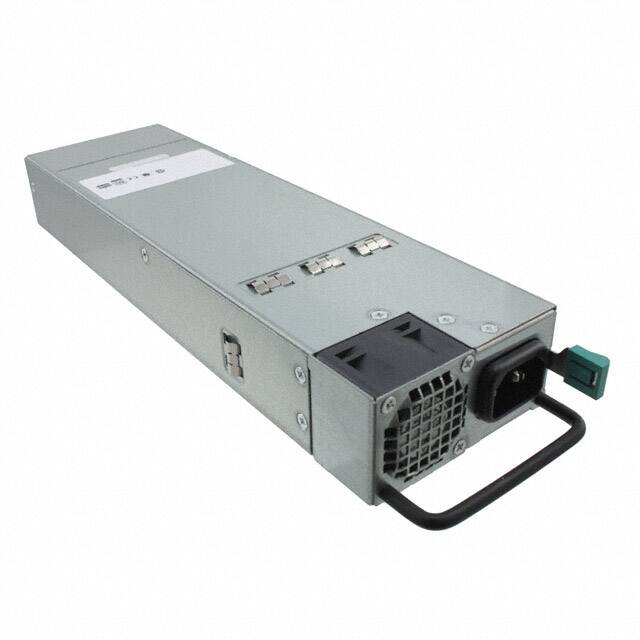

D1U3CS-W-850-12-HC4C

Teknik Özellikler

Kılıf / Paket

Module

Genişlik

83.8mm

Özellikler

Hot Swappable, I²C™ Interface, Load Sharing, PFC, PMBus™, Remote Sense, Standby Output, Universal Input

Reach Svhc

No SVHC

Output Power

850W

Boyut / Ölçü

11.00Lx3.20W x 1.57 H 279.4mmx81.3mmx39.9mm

Ripple Voltage Main Out

0.04242Vrms

Additional Feature

REMOTE SHUTDOWN

Yükseklik

39.878mm

Number Of Outputs

1

Nominal Output Voltage

12V

Current Output1

6A

Max Output Power

850W

Tip

Front End

Nem Hassasiyeti (MSL)

Not Applicable

Applications

ITE (Commercial)

Output Voltage

12V

Uzunluk

279.4mm

Protections

OUTPUT OVER CURRENT; OUTPUT OVER VOLTAGE; THERMAL

Max Input Voltage

264V

Voltage Isolation

3kV

Onay Kuruluşu

CB, CCC, cCSAus, CE, TUV

Parça Durumu

Active

RoHS Durumu

RoHS Compliant

Max Current Rating

10A

Max Power Dissipation

850W

Seri

D1U3CS-W-850 (850W)

Çalışma Sıcaklığı

-10°C~55°C

Min Input Voltage

90V

Montaj

Rack

Output Current

69.2A

Montaj Tipi

Rack Mount

Max Output Current

69.2A

Efficiency

93%
