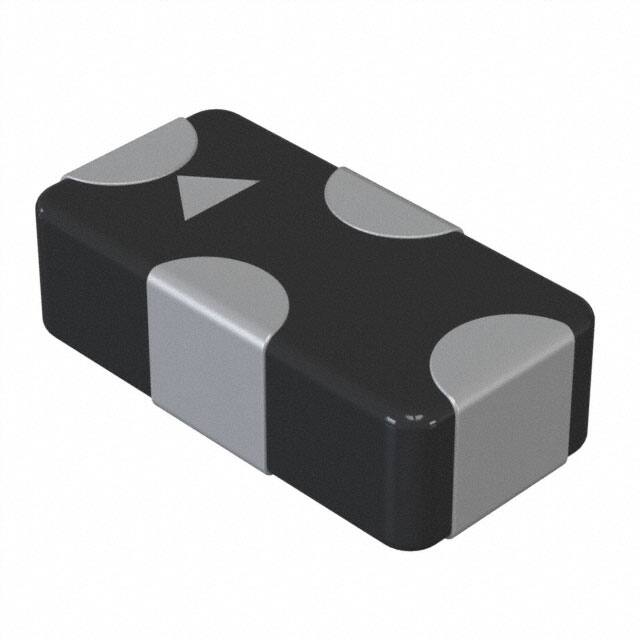

NFL15ST307X0J3D

Teknik Özellikler

Max Current Rating

50mA

Values

L = 95nH, C = 12pF

Endüktans

95 nH

Fonksiyon Sayısı

1

Attenuation Value

6dB @ 0MHz ~ 300MHz

Yükseklik

0.014 0.35mm

Seri

EMIFIL®, NFL15

Filter Order

3rd

Montaj Tipi

Surface Mount

Kılıf / Paket

0402 (1005 Metric), 4 PC Pad

Terminal

SMD/SMT

Genişlik

0.5mm

Center Cutoff Frequency

300MHz Cutoff

Kapasitans

12pF

Insertion Loss Max

6 dB

Number Of Channels

1

Depth

500μm

HTS Kodu

8504.50.80.00

Boyut / Ölçü

0.039Lx0.020W 1.00mmx0.50mm

Applications

General Purpose

Circuit Type

Filter

Lifecycle Status

TO BE DISCONTINUED (Last Updated: 2 weeks ago)

Max Voltage Rating Dc

6.3V

ECCN Kodu

EAR99

Akım Değeri

50mA

Additional Feature

T-TYPE CIRCUIT

Case Code Metric

1005

Ambalaj

Tape & Reel (TR)

Case Code Imperial

0402

Tip

Low Pass

RoHS Durumu

ROHS3 Compliant

Parça Durumu

Not For New Designs

Çalışma Sıcaklığı

-40°C~85°C

Esd Protection

No

Voltage Rated Dc

6.3V

Nem Hassasiyeti (MSL)

1 (Unlimited)

Packing Method

TR, 7 INCH
