Sevkiyat
Stoktan aynı gün hazırlık
Orijinal ürün
Doğrulanmış tedarik
RoHS
Compliant
Destek
Teknik ekip desteği

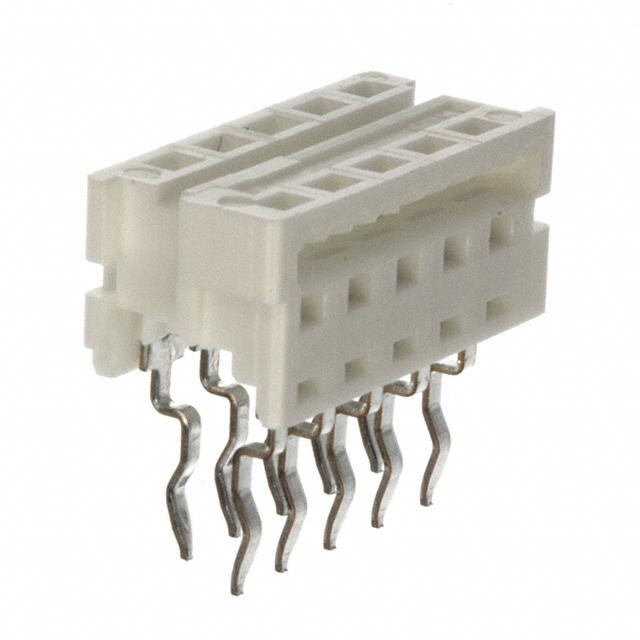

Teknik Özellikler
- Pcb Contact Pattern
- STAGGERED
- Orientation
- Straight
- Contact Plating
- Tin
- Gender
- Receptacle
- Kurşunsuz
- Lead Free
- Mil Conformance
- NO
- Fabrika Tedarik Süresi
- 5 Weeks
- Min. Çalışma Sıcaklığı
- -40°C
- Contact Materials
- Bronze, Tin
- Lead Pitch
- 1.27mm
- Sıra Sayısı
- 2
- Row Spacing Mating
- 2.54 mm
- Ul Flammability Code
- 94V-0
- Renk
- White
- Number Of Pcb Rows
- 2
- Contact Pattern
- STAGGERED
- Iec Conformance
- NO
- Filter Feature
- NO
- Pitch
- 1.27mm
- Option
- GENERAL PURPOSE
- Mixed Contacts
- NO
- Number Of Contacts
- 10
- Contact Rating Current
- 1.2A
- Contact Style
- IDC
- HTS Kodu
- 8536.69.40.40
- Voltage Working
- 250V
- Durability
- 30 Cycles
- Reliability
- COMMERCIAL
- Wire Gauge Max
- 28 AWG
- Nominal Gerilim
- 250V
- Parça Durumu
- Active
- Montaj
- Cable, Press Fit, Through Hole
- ECCN Kodu
- EAR99
- Wirecable Gauge
- 26 AWG
- Kurşunsuz Kodu
- yes
- Wire Gauge Min
- 26 AWG
- Glow Wire Compliant
- Non-compliant
- Connector Type
- Cable, IDC
- Contact Finish Mating
- TIN
- Flammability Rating
- UL94 V-0
