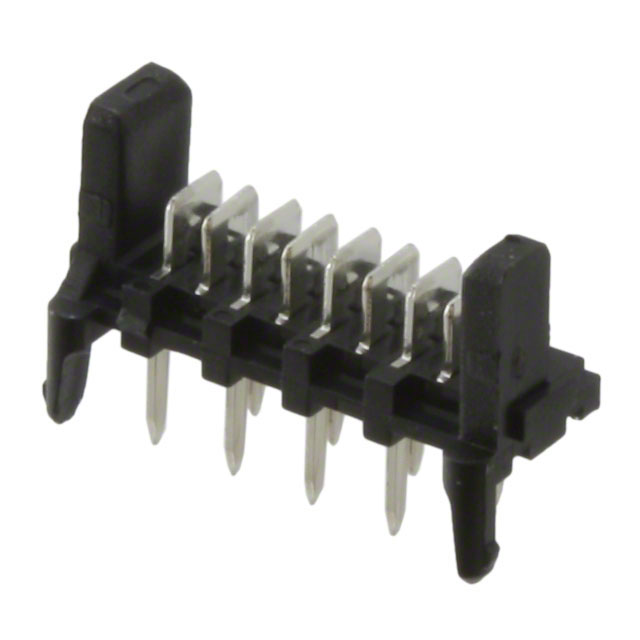

90325-9008

Teknik Özellikler

Mil Conformance

NO

Parça Durumu

Active

Polarization Key

POLARIZED HOUSING

Durability

30 Cycles

Kurşunsuz

Lead Free

Ul Flammability Code

94V-0

Option

GENERAL PURPOSE

Reliability

COMMERCIAL

Housing Material

Polyester

Lead Length

3.3mm

Connector Type

Blade Pin

Akım Değeri

1.2A

Lead Pitch

1.27mm

Body Length Or Diameter

0.567 inch

Dielectric Withstanding Voltage

750VAC V

Fabrika Tedarik Süresi

8 Weeks

Contact Resistance

15mOhm

Terminal

Solder

Number Of Pcb Rows

2

Iec Conformance

NO

Plating Thickness

200μin

Body Depth

0.252 inch

Contact Plating

Tin

RoHS Durumu

RoHS Compliant

Filter Feature

NO

Glow Wire Compliant

Non-compliant

Contact Pattern

RECTANGULAR

Kurşunsuz Kodu

yes

Renk

Black

Sıra Sayısı

1

Mixed Contacts

NO

Maks. Çalışma Sıcaklığı

105°C

Number Of Contacts

8

Number Of Conductors

ONE

Contact Finish Mating

NOT SPECIFIED

Reference Standard

UL, CSA

Contact Gender

Male

Min. Çalışma Sıcaklığı

-40°C

Pcb Contact Row Spacing

2.54 mm

Pitch

1.27mm
