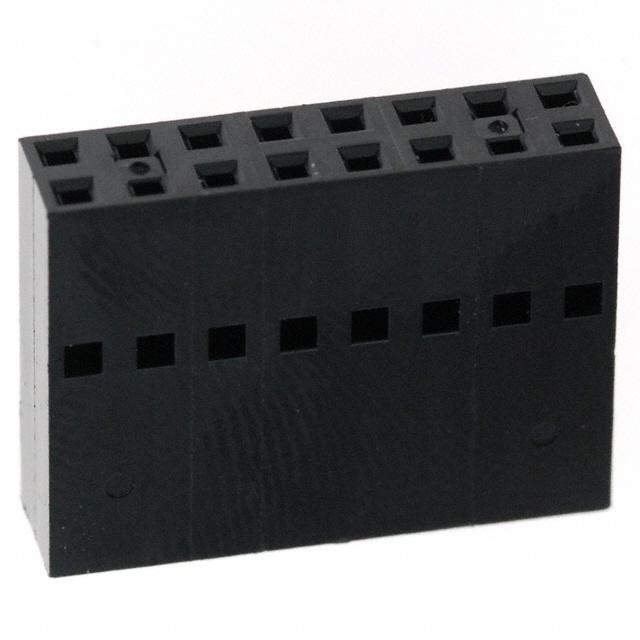

90143-0016

Teknik Özellikler

Min. Çalışma Sıcaklığı

-55°C

Parça Durumu

Active

Additional Feature

C-GRID III, POLARIZED

Pitch

2.54mm

Housing Material

PPO

Contact Finish Mating

NOT SPECIFIED

Mil Conformance

NO

Insulation Resistance

1000000000Ohm

Maks. Çalışma Sıcaklığı

105°C

Orientation

Straight

Option

GENERAL PURPOSE

Connector Type

Receptacle, Socket

Contact Pattern

RECTANGULAR

Contact Style

SQ PIN-SKT

RoHS Durumu

RoHS Compliant

Kurşunsuz

Lead Free

Yayın Yılı

2011

Mixed Contacts

NO

Body Depth

0.6 inch

Ul Flammability Code

94V-1

Number Of Contacts

16

Row Spacing Mating

2.54 mm

Dielectric Withstanding Voltage

1000VDC V

Contact Materials

NOT SPECIFIED

Kurşunsuz Kodu

yes

Terminal

Crimp

Iec Conformance

NO

Akım Değeri

3A

Rated Current Signal

3A

Reliability

COMMERCIAL

Montaj

Cable, Free Hanging

ECCN Kodu

EAR99

Glow Wire Compliant

Non-compliant

Fabrika Tedarik Süresi

12 Weeks

Bodyshell Style

PLUG

Filter Feature

NO

Contact Gender

Female

Din Conformance

NO

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Gender

Receptacle
