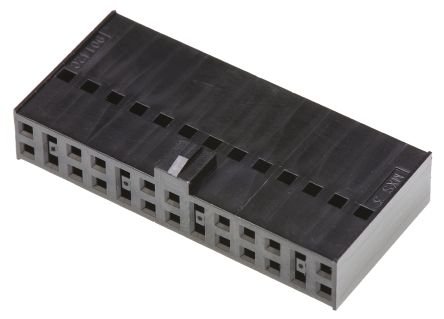

90142-0026

Teknik Özellikler

Iec Conformance

NO

Montaj

Cable, Free Hanging

Glow Wire Compliant

Non-compliant

ECCN Kodu

EAR99

Bodyshell Style

PLUG

Contact Gender

Female

Body Breadth

0.304 inch

Total Number Of Contacts

26

Pozisyon Sayısı

26

Voltage Rated Ac

350V

Uzunluk

33.02mm

Sıra Sayısı

2

Insulation Resistance

5GOhm

Mil Conformance

NO

Lead Pitch

2.54mm

Nominal Gerilim

350V

Material

Polyphenylene

Connector Type

Receptacle, Socket

Min. Çalışma Sıcaklığı

-55°C

Pitch

2.54mm

Halogen Free

Low Halogen

Fastening Type

Ramp

Contact Pattern

RECTANGULAR

Kurşunsuz

Lead Free

Mixed Contacts

NO

Genişlik

7.72mm

Akım Değeri

3A

Reliability

COMMERCIAL

Fabrika Tedarik Süresi

7 Weeks

Filter Feature

NO

Reference Standard

UL

Kurşunsuz Kodu

yes

Contact Resistance

20mOhm

Terminal

Crimp

HTS Kodu

8536.69.40.40

Reach Svhc

Unknown

Polarization Key

POLARIZED HOUSING

Max Voltage Rating Dc

350.35kV

Din Conformance

NO

Mating Information

MULTIPLE MATING PARTS AVAILABLE
