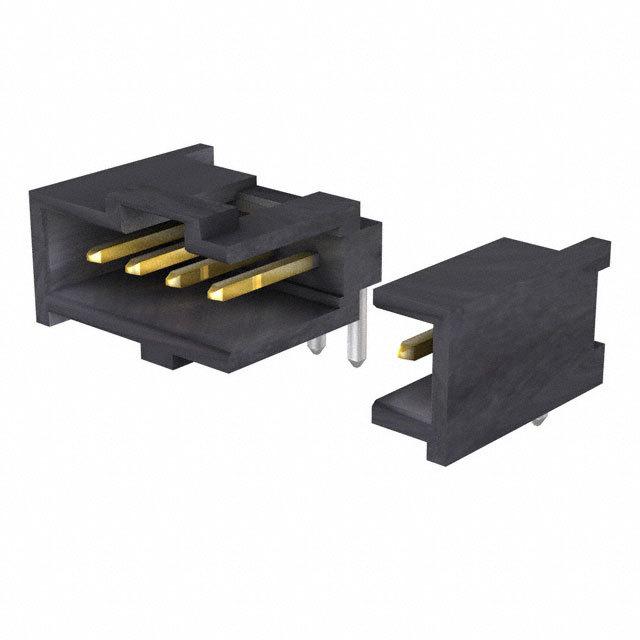

90136-2212

Teknik Özellikler

Orientation

Right Angle

Option

GENERAL PURPOSE

Maks. Çalışma Sıcaklığı

125°C

Radyasyon Dayanımı

No

Parça Durumu

Active

Housing Material

Polyester

Pcb Contact Pattern

RECTANGULAR

Additional Feature

C-GRID III, POLARIZED

Contact Materials

Brass

RoHS Durumu

RoHS Compliant

Contact Style

SQ PIN-SKT

Body Depth

0.429 inch

Ul Flammability Code

94V-0

Yayın Yılı

2008

Rated Current Signal

3A

Akım Değeri

3A

Fabrika Tedarik Süresi

13 Weeks

Filter Feature

NO

Reliability

COMMERCIAL

Terminal

Solder

Contact Resistance

20mOhm

Kurşunsuz Kodu

yes

Reference Standard

UL

Contact Lengthmating

6.7564mm

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Max Voltage Rating Dc

350.35kV

Din Conformance

NO

Renk

Black

Gender

Male

Lead Pitch

2.54mm

Mil Conformance

NO

Connector Type

Male Pin

Min. Çalışma Sıcaklığı

-55°C

Number Of Conductors

ONE

Pitch

2.54mm

Number Of Pcb Rows

1

Fastening Type

Latch

Contact Pattern

RECTANGULAR

Mixed Contacts

NO

Contact Plating

Gold
