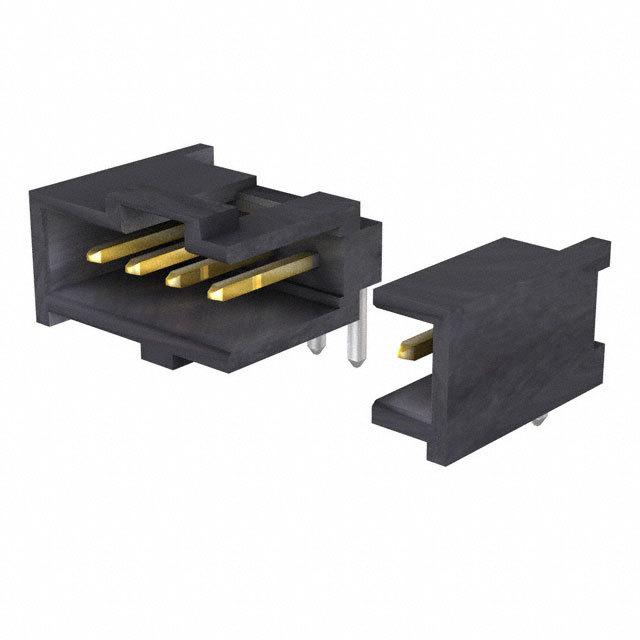

90136-2209

Teknik Özellikler

Sıra Sayısı

1

Iec Conformance

NO

Contact Gender

Male

Bodyshell Style

RECEPTACLE

Voltage Rated Dc

350V

Glow Wire Compliant

Non-compliant

Durability

500 Cycles

Montaj

Through Hole

Body Breadth

0.284 inch

Voltage Rated Ac

350V

Pozisyon Sayısı

9

Total Number Of Contacts

9

Number Of Pcb Rows

1

Fastening Type

Latch

Contact Pattern

RECTANGULAR

Mixed Contacts

NO

Contact Plating

Gold

Kurşunsuz

Lead Free

Mil Conformance

NO

Lead Pitch

2.54mm

Connector Type

Male Pin

Lead Length

2.9mm

Min. Çalışma Sıcaklığı

-55°C

Number Of Conductors

ONE

Pitch

2.54mm

Mating Post Length

6.75mm

Contact Lengthmating

6.7564mm

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Din Conformance

NO

Max Voltage Rating Dc

350.35kV

Renk

Black

Akım Değeri

3A

Rated Current Signal

3A

Fabrika Tedarik Süresi

9 Weeks

Filter Feature

NO

Reliability

COMMERCIAL

Terminal

Solder

Contact Resistance

20mOhm

Kurşunsuz Kodu

yes

Reference Standard

UL
