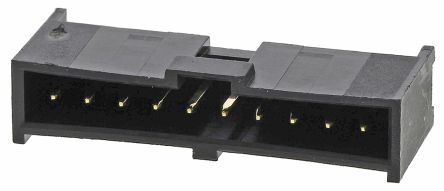

90136-1210

Teknik Özellikler

Insulation Resistance

5GOhm

Mil Conformance

NO

Lead Pitch

2.54mm

Material

Glass, Polyester

Connector Type

Male Pin

Min. Çalışma Sıcaklığı

-55°C

Number Of Conductors

ONE

Pitch

2.54mm

Number Of Poles

10

Number Of Pcb Rows

1

Fastening Type

Latch

Contact Pattern

RECTANGULAR

Contact Plating

Gold

Mixed Contacts

NO

Kurşunsuz

Lead Free

Iec Conformance

NO

Bodyshell Style

RECEPTACLE

ECCN Kodu

EAR99

Voltage Rated Dc

350V

Glow Wire Compliant

Non-compliant

Durability

500 Cycles

Montaj

Through Hole

Body Breadth

0.284 inch

Voltage Rated Ac

350V

Total Number Of Contacts

10

Uzunluk

28.75mm

Sıra Sayısı

1

Orientation

Vertical

Option

GENERAL PURPOSE

Maks. Çalışma Sıcaklığı

125°C

Radyasyon Dayanımı

No

Voltage Working

350V

Parça Durumu

Active

Depth

7.21mm

Housing Material

Polyester

Pcb Contact Pattern

RECTANGULAR

Additional Feature

C-GRID III

Contact Materials

Brass

RoHS Durumu

RoHS Compliant

Contact Style

SQ PIN-SKT
